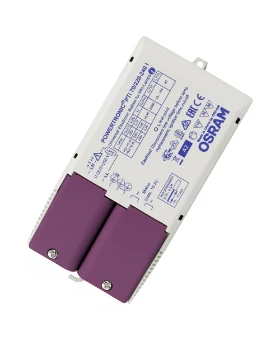

POWERTRONIC® INTELLIGENT PTi I 70/220…240 I

Add to selection
General information
Ordercode YESSS
0140-3203
Product code
4008321099501
EAN code
04008321099501
Product group
Ballast (electrical)
Brand
OSRAM
Serie
POWERTRONIC® INTELLIGENT PTi I
Type
PTi 70/220…240 I
POWERTRONIC® INTELLIGENT PTi I 70/220…240 I POWERTRONIC® INTELLIGENT PTi I 70/220…240 I
STOCK
IN STOCK
0 piece
Product description

E-VSA voor HID lampen, met kabelklem. Productkenmerken: Energie-efficiëntie-index EEI: A2. Voedingsspanning: 220…240 V. Lijnfrequentie: 50…60 Hz. RI-onderdrukking: conform EN 55015/CISPR 15. Veiligheid: conform EN 61347-2-12. Harmonische vervorming conform EN 61000-3-2. Immuniteit conform EN 61547. Productvoordelen: Uitgebreide aansluitbloksectie laat stroomdoorlussing toe. Losschroefbare kabelklemmen voor betrouwbare trekontlasting. Lange betrouwbare levensduur bij maximaal toegelaten temperaturen. Automatische veiligheidsuitschakeling van lampen in geval van een defect of op het einde van de levensduur (EoL). Toepassingsgebieden: Winkelverlichting. Wellness- en fitnessruimten (op droge, tegen corrosie beschermde plaats). Effect- en accentverlichting. Veiligheidsadvies: Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.. Attention! For safety reasons disconnect the device before replacing the lamp!.

Product specifications
Model
Electronic
Multiwatt model
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
For lamp type HI
Yes
For lamp type HM
Yes
For lamp type HS
No
For lamp type LS
No
For lamp type T7
No
For lamp type T16
No
For lamp type T16-R
No
For lamp type T26
No
For lamp type T38
No
For lamp type T-R
No
For lamp type T-U
No
For lamp type TC-D
No
For lamp type TC-DD
No
For lamp type TC-DEL
No
For lamp type TC-F
No
For lamp type TC-L
No
For lamp type TC-QEL
No
For lamp type TC-S
No
For lamp type TC-SEL
No
For lamp type TC-T
No
For lamp type TC-TEL
No
Suitable for lamp power (1 lamp)
73 - 73 W
Suitable for number of lamps
1 - 1
Suitable for lamp power
73 - 73 W
Nominal voltage
220 - 240 V
Housing
Plastic housing
With strain relief
Yes
Degree of protection (IP)
IP20
Protection class according to IEC 61140
I
Length
171 mm
Width
83 mm
Height
32 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Dimmable
No
Dimming DALI-2
No
more specifications
