General information
FLEXILED 4SM23S/A 840 WIT LB1200/150-LED-Opbouwarmatuur 4000K 26W stat
FLEXILED 4SM23S/A 840 WIT LB1200/150-LED-Opbouwarmatuur 4000K 26W stat
Ordercode YESSS
3110-1122
Product code
3122036
EAN code
04046075192574
Product group
Ceiling-/wall luminaire
Brand
Performance in Lighting
Serie
FLEXILED
Type
3122036
Product description
Opbouwarmatuur voor binnen, bestaande uit: Behuizing van vormstabiel 1,0 mm plaatstaal. Slagvaste, afdrukbestendige poedercoating. Zwarte reflector zorgt voor maximaal rendement en hoog visueel comfort. Geschikt voor kantoortoepassingen conform EN 12464-1. UGR <19 voor alle lichtstromen. Betrouwbaar en onderhoudsarm 50.000u L80B10. Kleurtolerantie volgens MacAdam ≤3 SDCM. 2 vermogensniveaus instelbaar. Uitvoering in speciale kleuren op verzoek leverbaar
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Steel
Housing colour
White
Type of grid
Other
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
None

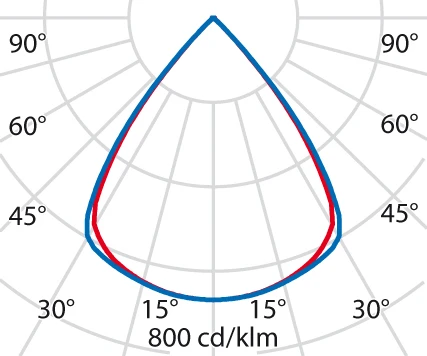

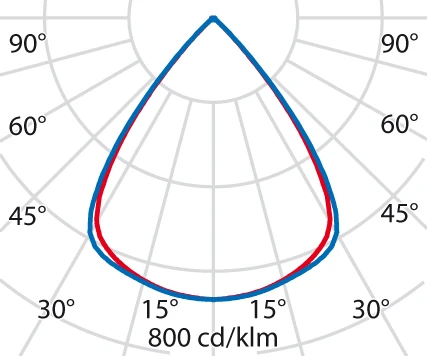

Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
99800 h
Degree of protection (NEMA)
1
Impact strength
IK05
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
10 - 40 °C
Suitable for emergency lighting
No
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
15 - 23 W
Max. system power
26 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
150 mm
Height/depth
12 mm
Length
1200 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Conductor cross section
1.5 mm²
Connection type
Push-in clamp
Surface protection housing
Powder coating
Nominal current
108 - 118 mA
Exchangeable control gear
Yes
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
79 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
70 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
55 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
0.8 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
1.2 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
0
Max. number of luminaires per miniature circuit breaker C16 (MCB)
0
Flickering value Pst LM
0.7
Stroboscope effect value SVM
0.4
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
19
Colour of light adjustable
No
Luminous flux adjustable
Positions
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Energy efficiency class of the light source according to EU regulation 2019/2015
B
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Dimmable
No
Luminaire efficacy
147 - 152 lm/W
Rated luminous flux according to IEC 62722-2- 1
2590 - 3830 lm
With presence detector
No
Containing product according to 2019/2020/EU
Yes
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1 - 2.5 mm²
Ball-proof according to DIN 18032-3
No
Suitable for clamp-mounting
No
With mounting material
Yes
With switch
No
