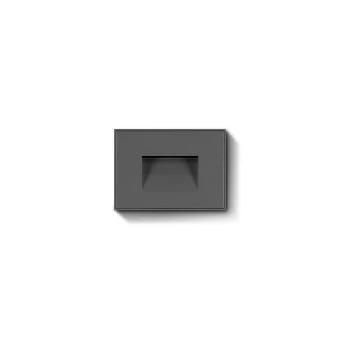

INSERT+ZERO SM 3.5 A/W 827 ANTRACIET-LED-Wandarmatuur 2700K 4W statisc
Add to selection
General information
Ordercode YESSS
3107-9068
Product code
3118103
EAN code
08018367734393
Product group
Ceiling-/wall luminaire
Brand
Performance in Lighting
Serie
INSERT+
Type
3118103
INSERT+ZERO SM 3.5 A/W 827 ANTRACIET-LED-Wandarmatuur 2700K 4W statisc
INSERT+ZERO SM 3.5 A/W 827 ANTRACIET-LED-Wandarmatuur 2700K 4W statisc
STOCK
IN STOCK
0
piece
Product description
Wandarmatuur voor binnen en buiten, bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak ISO 9227/12944 - ISO 9223 (C5). Base de fixation au mur et au plafond en aluminium peint et moulé sous pression. Afscherming van vlak van binnen gesatineerd glas. Pakking in slijtvast siliconen. LED module voor netspanning 220-240V 50/60Hz beschermd tegen overbelasting tot 500 V. Snelle installatie met bevestigingsveren. De modellen zijn ontwikkeld zonder zichtbare schroeven.
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
No
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED exchangeable
Suitable for number of light sources
7
Lamp holder
Other
Housing material
Aluminium
Housing colour
Anthracite
Material cover
Other
Type of grid
Matt
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
Electronic ballast
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Diffuser lens/optic/panel
Light distribution
Asymmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Impact strength
IK08
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Suitable for emergency lighting
No
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Suitable for lamp power
4 - 4 W
Max. system power
4 W
Colour of light
White
Colour temperature
2700 - 2700 K
Colour rendering index CRI
80-89
Power factor
0.8
Width
37.5 mm
Height/depth
83.5 mm
Length
113.5 mm
Type of wiring
Ending
Number of poles
3
Conductor cross section
1.5 mm²
Connection type
Other
Surface protection housing
Powder coating
Nominal current
13 - 13 mA
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Max. number of luminaires per miniature circuit breaker B16 (MCB)
160
Max. number of luminaires per miniature circuit breaker C16 (MCB)
256
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG1
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Dimmable
No
Luminaire efficacy
37 - 37 lm/W
Rated luminous flux according to IEC 62722-2- 1
148 - 148 lm
With presence detector
No
Containing product according to 2019/2020/EU
Yes
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Max. number of luminaires per miniature circuit breaker C10 (MCB)
160
Emergency power supply system
None
Connectable conductor cross section
1.5 - 1.5 mm²
Ball-proof according to DIN 18032-3
No
Suitable for clamp-mounting
No
With mounting material
No
With switch
No
