General information

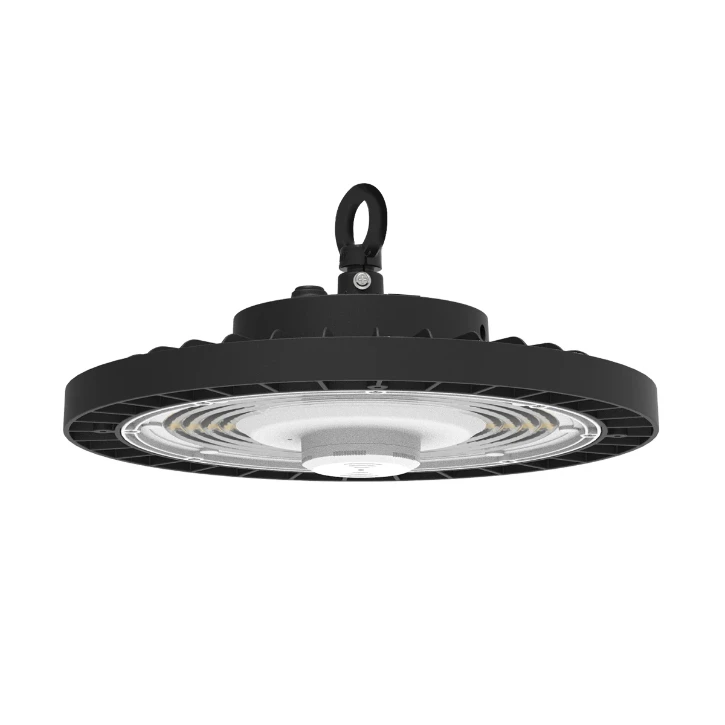

A+ MP 85/100/150/200W C/EW 840 DIM0-10V-LED-High-bay en low-bay armatu
A+ MP 85/100/150/200W C/EW 840 DIM0-10V-LED-High-bay en low-bay armatu
Ordercode YESSS
3110-1006
Product code
3119399
EAN code
08018367736663
Product group
High bay luminaire
Brand
Performance in Lighting
Serie
Serie A+
Type
3119399
Product description

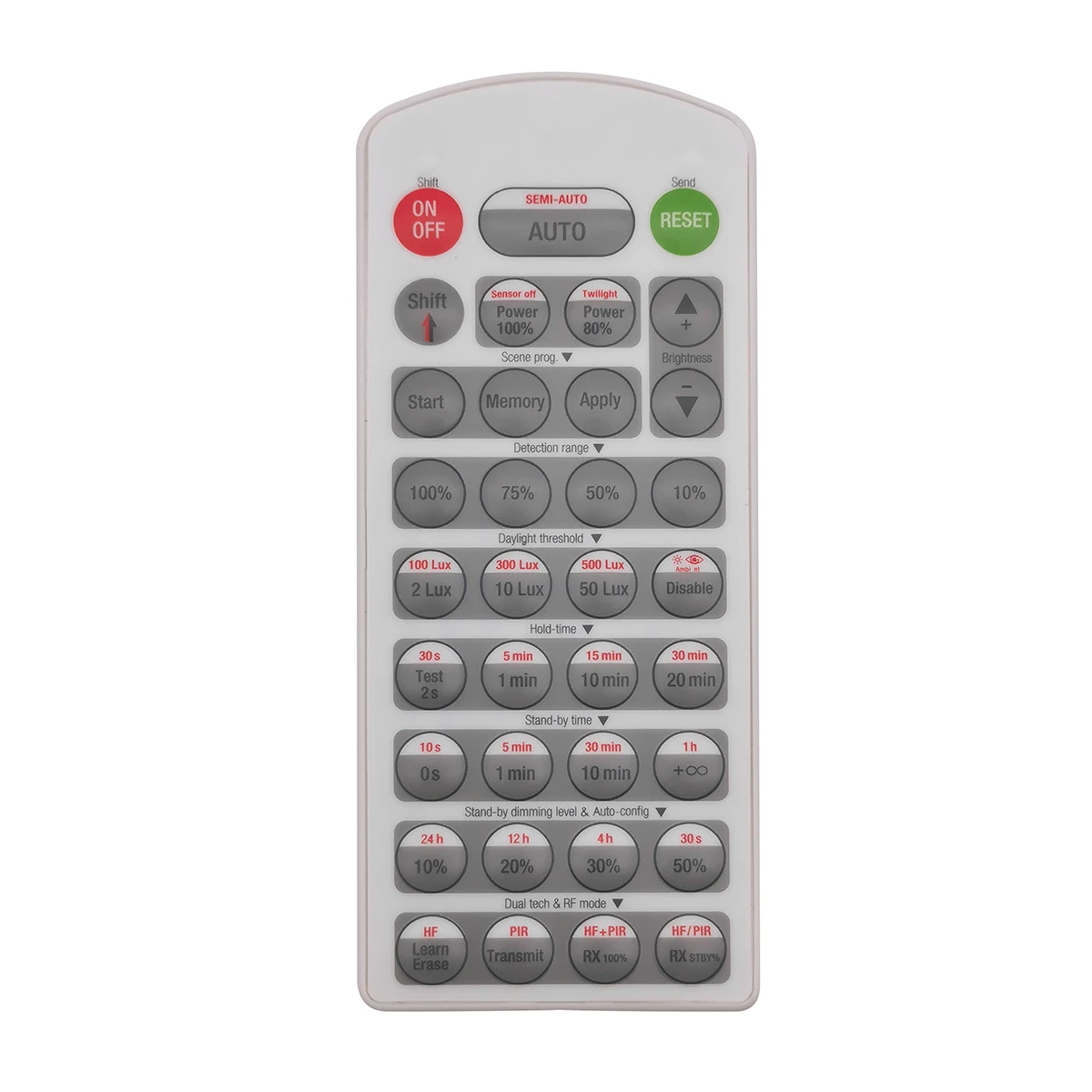

LED-pendelarmatuur voor industriële verlichting, voor binnen en buiten, bestaande uit: Behuizing en ring van spuitgietaluminium gelakt met polyester poederlak na chemische conversiebehandeling van het oppervlak. Afscherming met geïntegreerde optische groep van transparant Uv- en warmte bestendig technopolymeer. Pakking van slijtvast siliconen, met zeer hoge elastische terugveer-capaciteit. Specificaties LED multichip 4000 K. Schroeven van roestvrij staal. Ophanghaak van gelakt aluminium met veiligheidsschroeven. Compleet met kabel H05RN-F. Armatuur inclusief driver. Opties: Gelakte aluminium beugel. Infrarood-afstandsbediening voor sensormodule.
Product specifications
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Suitable for auxiliary lamp
No
Lamp holder
Other
Housing material
Aluminium
Housing colour
Black
Voltage type
AC
Nominal voltage
90 - 305 V
Type of control gear
Electronic ballast
With control gear
Yes
Dimming 0-10 V
Yes
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Focal lens
Reflector
Other
Material reflector
Plastic

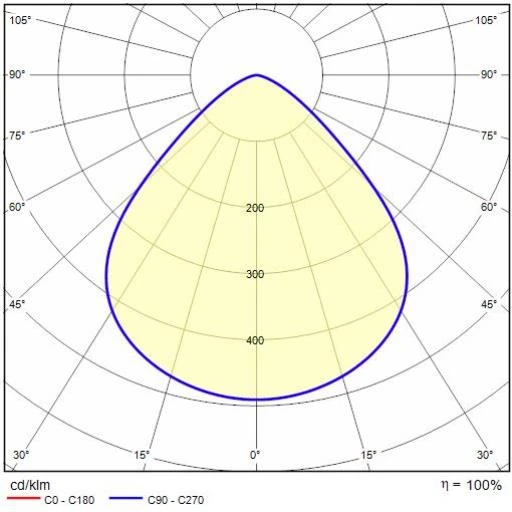

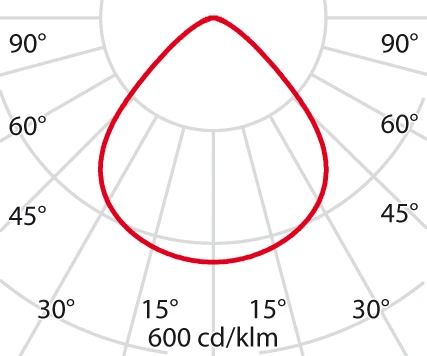

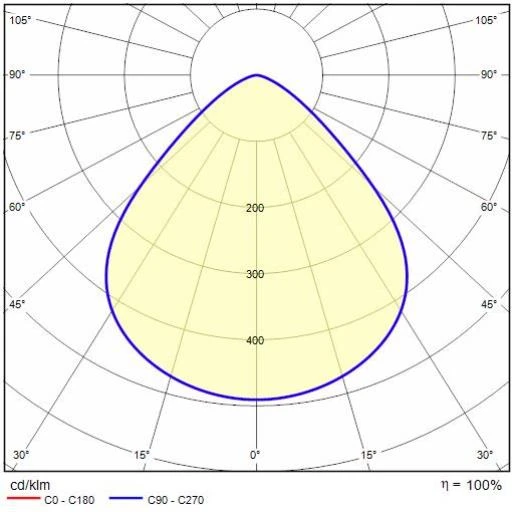

Beam angle
41-80° - Wide beam
Degree of protection (IP)
IP65
Impact strength
IK08
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Filament test according to IEC 60695-2-11
960 °C - 30 s
Rated ambient temperature according to IEC 62722-2-1
-40 - 45 °C
Suitable for lamp power
85 - 200 W
Max. system power
200 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.95
Width
39 mm
Height/depth
15.5 mm
Length
39 mm
Type of wiring
Ending
Number of poles
3
Connection type
Other
Suitable for emergency lighting
Yes
With protective cover
No
Nominal current
700 - 1500 mA
Exchangeable control gear
No
Colour consistency (McAdam ellipse)
SDCM3
Constant light output (CLO)
No
Colour of light adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
Max. number of luminaires per miniature circuit breaker B16 (MCB)
3
Max. number of luminaires per miniature circuit breaker C16 (MCB)
6
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Operation by Bluetooth
No
Reflector colour
Other
With movement sensor
No
Dimmable
Yes
Dimming DALI-2
No
Suitable for ceiling mounting
No
Suitable for wall mounting
No
Suitable for suspended mounting
Yes
Luminaire efficacy
159.5 - 161.1 lm/W
Rated luminous flux according to IEC 62722-2- 1
15191 - 15191 lm
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1.5 - 1.5 mm²
With presence detector
No
With light sensor
No
Containing product according to 2019/2020/EU
Yes
Ball-proof according to DIN 18032-3
No
