SL720+SM RXL 30 S/B 830 WIT SEIR MP-LED-Opbouwarmatuur 3000K 33W

  • 3094-1932
  • |
  • 3115903
0 piece in stock
Login to order
Don’t have an account? Request account
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

SL720+SM RXL 30 S/B 830 WIT SEIR MP-LED-Opbouwarmatuur 3000K 33W SL720+SM RXL 30 S/B 830 WIT SEIR MP-LED-Opbouwarmatuur 3000K 33W DALI
Ordercode YESSS
3094-1932
Product code
3115903
EAN code
04046075144894
Product group
Ceiling-/wall luminaire
Brand
Performance in Lighting
Serie
SL720+
Type
3115903

Product description

LED opbouwarmatuur voor binnen, bestaande uit: Behuizing van geëxtrudeerd gelakt aluminium. Opbouwframe van plaatstaal, gepoedercoat. Afscherming met micro-prisma's voor een efficiënte lichtverspreiding, gereduceerde verblinding en een grote uniformiteit (MP). LED Sidelight-technologie voor een gelijkmatige lichtverdeling over de gehele zone. De ledmodules kunnen eenvoudig met slechts enkele handelingen achteraf worden vervangen (ook mogelijk zonder elektricien). Lichtdiffusie, direct met een subtiele achtergrondverlichting. RA-waarde > 80. Kleurtolerantie volgens MacAdam ≤3 SDCM. Ook leverbaar in dim push button. Met de bluetoothbesturing 'OSRAM BT Control' kan de verlichting heel eenvoudig via verschillende parameters vanuit de app worden geconfigureerd, gepersonaliseerd of gegroepeerd. Bij de Tunable-White-versie kunnen het niveau van de verlichtingssterkte en de lichtkleur van 2.700 K tot 6.500 K, afhankelijk van het tijdstip (DALI DT8), handmatig worden geregeld. Bij de HCL-versie kunnen het niveau van de verlichtingssterkte en de lichtkleur van 2700 K tot 6500 K, afhankelijk van het tijdstip (DALI DT8), handmatig worden geregeld. Optioneel met aanwezigheidssensor en daglichtregeling. Anti-verblinding DIN EN 12464-1. Uitvoering in speciale kleuren op verzoek leverbaar.

Product specifications

Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
Yes
Lamp type
LED exchangeable
With light source
Yes
Suitable for number of light sources
1
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, structured
Voltage type
AC/DC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
Yes
Dimming Zigbee
No
Dimming with push-button
Yes
Light distributor
Diffuser lens/optic/panel

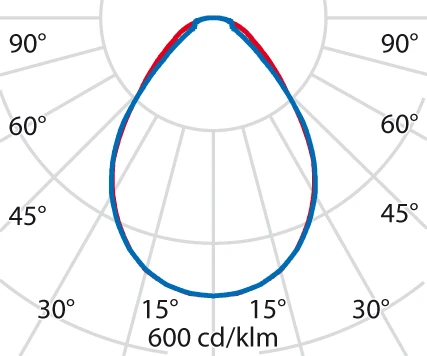

Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
99800 h
Degree of protection (NEMA)
1
Impact strength
IK05
Protection class according to IEC 61140
I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
10 - 40 °C
Suitable for emergency lighting
No
With movement sensor
Yes
With light sensor
Yes
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
650 °C - 30 s
Suitable for lamp power
30 - 30 W
Max. system power
33 W
Colour of light
White
Colour temperature
3000 - 3000 K
Colour rendering index CRI
80-89
Power factor
0.9
Width
240 mm
Height/depth
57 mm
Length
1538 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
3
Conductor cross section
1.5 mm²
Connection type
Push-in clamp
Surface protection housing
Powder coating
Nominal current
138 - 150 mA
Exchangeable control gear
Yes
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)
79 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
70 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)
55 %
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)
0.8 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)
1.2 %
Max. number of luminaires per miniature circuit breaker B16 (MCB)
21
Max. number of luminaires per miniature circuit breaker C16 (MCB)
35
Flickering value Pst LM
0.7
Stroboscope effect value SVM
0.4
Constant light output (CLO)
No
Photobiological safety according to EN 62471
RG0
Unified Glare Ratio (UGR)
19
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Energy efficiency class of the light source according to EU regulation 2019/2015
C
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Movement sensor/presence detector technology
Passive infrared
Dimmable
Yes
Luminaire efficacy
125 - 125 lm/W
Rated luminous flux according to IEC 62722-2- 1
4130 - 4130 lm
With presence detector
Yes
Containing product according to 2019/2020/EU
Yes
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
Max. number of luminaires per miniature circuit breaker C10 (MCB)
21
Emergency power supply system
None
Emergency function monitoring system
None
Connectable conductor cross section
1 - 2.5 mm²
Ball-proof according to DIN 18032-3
No
Suitable for clamp-mounting
No
With mounting material
Yes
With switch
No
Manufacturer's website
