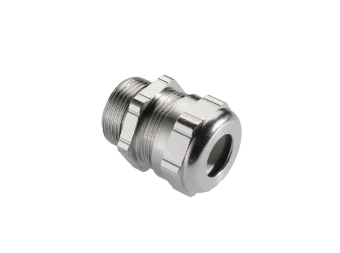

Pflitsch EMC 2182209S04 MS wartel
Add to selection
General information
Ordercode YESSS
1034-7907
Product code
2182209S04
EAN code
04050366123154
Product group
Cable gland
Brand
Pflitsch
Serie
UNI IRIS EMV dicht wartels
Type
Marine
Pflitsch EMC 2182209S04 MS wartel
Pflitsch EMC 2182209S04 MS wartel
STOCK
IN STOCK
0
piece
Product description
EMC-Wartel, messing vern. M18, doorl. 6,5-9mm scherm 4-8,5mm
Product specifications
Thread type
Metric
Nominal thread size metric/PG
18
Pitch thread
1.5 mm
Thread length
10 mm
Wrench width
24 mm
Hexagon angular dimension
26.7 mm
Suitable for cable diameter
6.5 - 9 mm
Material
Metal
Material quality
Brass
Surface protection
Nickel-plated
Halogen free
Yes
Glass-fibre reinforced
No
Degree of protection (IP)
IP68
Shock resistant
Yes
Colour
Other
Bend radius protection/trumpet flare
No
With locknut
No
Model
Straight
Multi seal area
No
Flat cable coupling
No
With strain relief
Yes
Type of sealing
Sealing ring
Separable screw gland
No
Working temperature
-40 - 135 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
Yes
Screened
Yes
Type of strain relief according to EN 62444
Type A
