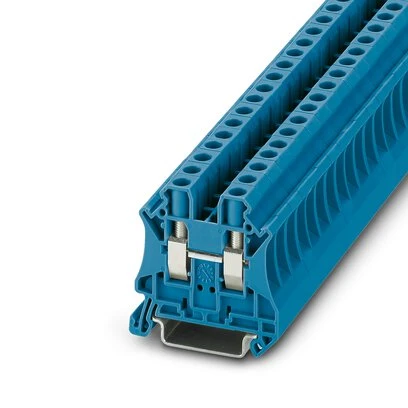

UT 6 BU
Add to selection
General information
Ordercode YESSS
3031-0016
Product code
3044144
EAN code
04017918960421
Product group
Feed-through terminal block
Brand
Phoenix Contact
Serie
Aansluitklem
Type
UT 6 BU
UT 6 BU
UT 6 BU
STOCK
IN STOCK
45
piece
Product description
Aansluitklem, nominale spanning: 1000 V, nominale stroom: 41 A, aansluitmethode: schroefaansluiting, nominale aansluitdoorsnede: 6 mm², doorsnede: 0,2 mm² - 10 mm², montagetechniek: NS 35/7,5, NS 35/15, kleur: blauw
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.2 - 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 0.25 mm²
Connectable conductor cross section solid-core
0.2 - 10 mm²
Connectable conductor cross section multi-wired
0.2 - 2.5 mm²
Rated current In
41 A
Rated voltage
1000 V
Type of electrical connection 1
Screw connection
Type of electrical connection 2
Screw connection
Number of clamp positions per level
2
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Operating temperature
-60 - 110 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Blue
Internally connected stages
Yes
Width
8.2 mm
Height
47.7 mm
Depth
46.9 mm
Suitable for conductor material
Aluminium/copper
