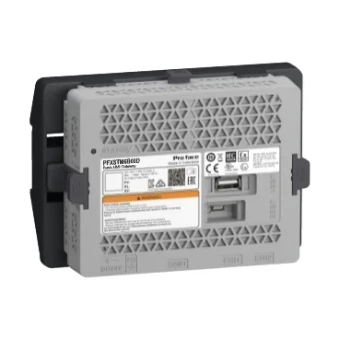

Graphic panel Pro-face by Schneider Electric
Add to selection
General information
Ordercode YESSS
3105-6411
Product code
PFXSTM6B00D
EAN code
03606481856425
Product group
Graphic panel
Brand
Pro-face by Schneider Electric
Product specifications
Supply voltage DC
12 - 24 V
Voltage type (supply voltage)
DC
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
No
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G (UMTS)
No
IO link master
No
Type of display
TFT
Colour display
Yes
Number of colours of the display
1600000
Number of grey-scales/blue-scales of display
0
Screen diagonal
0 inch
Number of pixels, horizontal
0
Number of pixels, vertical
0
Usable project memory/user memory
512 kByte
With numeric keyboard
Yes
With alpha numeric keyboard
No
Number of function buttons, programmable
0
Number of buttons with LED
0
Number of system buttons
0
Touch technology
Other
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
No
Process default value (input) possible
No
With recipes
No
Number of password levels
0
With printer output
No
Number of online languages
0
Additional software components, loadable
No
Operating temperature
0 - 60 °C
Suitable for rail mounting
Yes
Wall mounting/direct mounting
No
Suitable for safety functions
Yes
Width of the front
150.5 mm
Height of the front
101 mm
Built-in depth
63.3 mm
