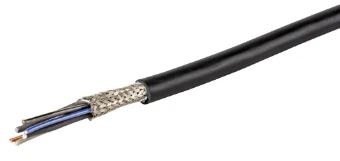

Data and communication cable Jobarco
Add to selection
General information
Ordercode YESSS
3047-8776
Product code
2171404
EAN code
07611832311719
Product group
Data and communication cable
Brand
Jobarco
Product specifications
Conductor surface
Tinned
Nominal cross section conductor
0.75 mm²
Conductor category
Class 5 = flexible
Number of cores
4
Number of stranding elements
2
Stranding element
Pairs
Core identification
Colour
Screen over stranding element
Foil
Screen over stranding
Braiding
Longitudinal water blocking cable
No
Radial water blocking cable
No
Colour outer sheath
Black
Halogen free according to EN IEC 60754-2
Yes
Low smoke according to EN IEC 61034-2
Yes
Oil resistant according to EN IEC 60811-404
Yes
Outer diameter approximate
9.5 mm
Permitted cable outer temperature during assembling/handling
-40 - 125 °C
Permitted cable outer temperature after assembling without vibration
-50 - 125 °C
Suitable for underground installation
No
Core identification according to HD 308 S2
No
Armouring/reinforcement
None
Cable geometry
Round
Certified for shipboard application
Yes
Suitable as telephone cable
No
Suitable as computer data cable
Yes
Suitable as signalling cable
Yes
