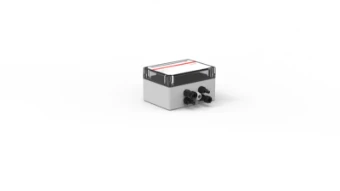

Stringbox 1100V 1 in 1 uit 1 MPPT MC4
Add to selection
General information
Ordercode YESSS
3066-1335
Product code
RA-515.657
EAN code
03838757074473
Product group
Surge protection device for power supply systems
Brand
Raycap
Serie
ProTec DC
Type
ProTec T1-1100PV-3Y-2MC
Stringbox 1100V 1 in 1 uit 1 MPPT MC4
Stringbox 1100V 1 in 1 uit 1 MPPT MC4
STOCK
IN STOCK
0
piece
Product description
Raycap is een internationale fabrikant van elektronische componenten voor overspanningsbeveiliging, connectiviteit en monitoring. Het bedrijf ontwikkelt overspanning-oplossingen voor kritieke applicaties waarbij de beschikbaarheid van installaties en persoonlijke veiligheid topprioriteiten zijn.
Product specifications
System configuration DC
Yes
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
4
Nominal discharge surge current (8/20)
20 kA
Nominal voltage AC
0 V
Short-circuit breaking capacity (Isccr)
11 kA
Max. continuous voltage AC
0 V
Max. discharge surge current (8/20)
40 kA
Mounting method
Surface mounted
Construction size
Other
Max. PV-voltage
1100 V
Voltage protection level
4.4 kV
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP67
Integrated short-circuit protection
No
Leakage-current free
No
Product information
