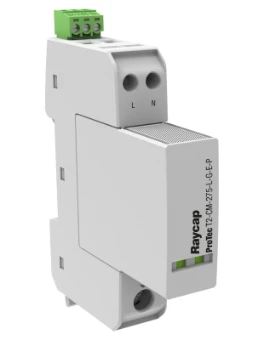

Overspanningsbeveiliging Type 2+3 TT, TN-S
Add to selection
General information
Ordercode YESSS
3095-3317
Product code
RA-515.597
EAN code
03838757074688
Product group
Surge protection device for power supply systems
Brand
Raycap
Serie
ProTec T2 CM
Type
ProTec T2-CM-275-1+1-L-E-R
Overspanningsbeveiliging Type 2+3 TT, TN-S
Overspanningsbeveiliging Type 2+3 TT, TN-S
STOCK
IN STOCK
0
piece
Product description
Raycap is een internationale fabrikant van elektronische componenten voor overspanningsbeveiliging, connectiviteit en monitoring. Het bedrijf ontwikkelt overspanning-oplossingen voor kritieke applicaties waarbij de beschikbaarheid van installaties en persoonlijke veiligheid topprioriteiten zijn.
Product specifications
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
4
Nominal discharge surge current (8/20)
10 kA
Nominal voltage AC
230 V
Nominal voltage DC
0 V
Short-circuit breaking capacity (Isccr)
25 kA
Max. continuous voltage AC
275 V
Max. discharge surge current (8/20)
20 kA
Max. continuous voltage DC
0 V
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
1 modular spacing
Max. PV-voltage
0 V
Voltage protection level
0 kV
Max. conductor cross section solid (solid, stranded)
35 mm²
Max. conductor cross section flexible (fine-strand)
25 mm²
Voltage protection level L-N
1.2 kV
Voltage protection level N-PE
1.5 kV
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optical
Category type 2
Yes
Degree of protection (IP)
IP20
Max. overcurrent protection device, parallel connection (fuse)
100 A
Max. overcurrent protection device, series connection (fuse)
160 A
Integrated short-circuit protection
No
Integrated short-circuit protection selective to fuse gG
0 A
Leakage-current free
No
