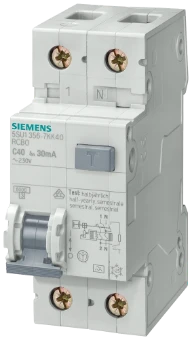

Earth leakage circuit breaker Siemens AG
Add to selection
General information
Ordercode YESSS
3071-2399
Product code
5SU13567KK08
EAN code
04001869306780
Product group
Earth leakage circuit breaker
Brand
Siemens AG
Product specifications
Number of poles (total)
2
Number of protected poles
1
Rated voltage
230 V
Rated insulation voltage Ui
264 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
8 A
Rated fault current
0.03 A
Leakage current type
A
Current limiting class
3
Rated short-circuit breaking capacity according to EN 61009
6 kA
Rated short-circuit breaking capacity according to IEC 60947-2
15 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
Disconnection characteristic
Undelayed
Surge current capacity
1 kA
Voltage type
AC
Release characteristic
C
Concurrently switching neutral conductor
Yes
With interlocking device
Yes
Overvoltage category
2
Pollution degree
2
Width in number of modular spacings
2
Built-in depth
70 mm
Anti-nuisance tripping version
Yes
Connectable conductor cross section solid-core
0.75 - 35 mm²
Connectable conductor cross section multi-wired
0.75 - 35 mm²
