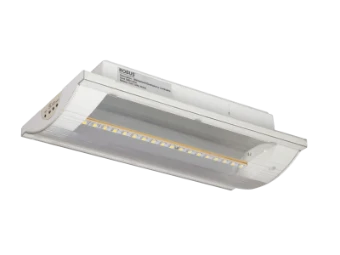

UNIVERSAL EMERGENCY 4.5W LED fitting, IP40, 350mm, White
Add to selection
General information
Ordercode YESSS
1934-7922
Product code
R8MUSTLED-01
EAN code
05391370048477
Product group
Emergency luminaire
Brand
Robus
Serie
Emergency Lighting
Type
Emergency Bulkhead
UNIVERSAL EMERGENCY 4.5W LED fitting, IP40, 350mm, White
UNIVERSAL EMERGENCY 4.5W LED fitting, IP40, 350mm, White
STOCK
IN STOCK
76
piece
Product description
* Suitable for use in offices, public buildings, hotels, bars & clubs, restaurants, schools, health centres, hospitals * LED replacement for T5 emergency bulkheads * No UV or IR content * Surface or recessed mounted * Fully polycarbonate housing * Automatic self-test function: once a week - test lasts 15mins. Once a year - test lasts 3 hours * Complete with 4 piece legend set * Blade dropped legend accessory available (R8MULK-15) * Large 4 terminal connector block allow loop-in/loop-out * Complete with NiCad battery providing excess of 3 hour emergency discharge duration * Complete with green LED charging indicator
Product specifications
Mounting method
Wall surface mounting/ceiling surface mounting
Function
Escape route lighting/signage
With pictogram
Yes
Battery technology
NiCd
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
None
Housing material
Plastic
Housing colour
White
Material cover
Plastic, opal
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
Light distributor
Diffuser lens/optic/panel
Rated lifetime L70/B50 at 25 °C
30000 h
Degree of protection (IP)
IP20
Impact strength
IK09
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
5 - 40 °C
Max. system power
4.4 W
Colour temperature
4000 - 4000 K
Power factor
0.55
Width
175 mm
Height/depth
80 mm
Length
350 mm
Built-in height/depth
50 mm
