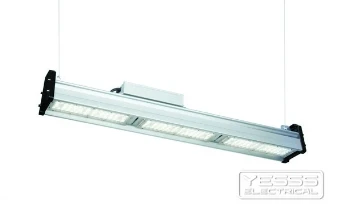

PRISMOID 150W LED Linear High Bay, IP65, 1-10V Dimmable, Silver,

Add to selection
General information
Ordercode YESSS
3019-6937
Product code
RPD15050DA-23
EAN code
05391370061568
Product group
High bay luminaire
Brand
Robus
Serie
LED High Bay / Low Bay
Type
Prismoid
PRISMOID 150W LED Linear High Bay, IP65, 1-10V Dimmable, Silver, PRISMOID 150W LED Linear High Bay, IP65, 1-10V Dimmable, Silver, 880mm
STOCK
IN STOCK
0 piece
Product description

* Suitable for use in warehouses, manufacturing plants, garages, workshops & aircraft hangars, retail superstores, gymnasium & sports halls * LED replacement for 300W metal halide fittings * Extruded aluminium housing with PMMA lens providing very high impact rating of IK10, optimal heat dissipation and light distribution * Prewired with 350mm rubber flex * Very high efficacy of 135lm/W * Wide ambient operating temperature range of -25°C to +40°C * Comes with 30x70 degree beam angle lens making it optimal for high racking applications * 90 degree lens available as accessory * Rotating surface mounting brackets also available * Dimmable with most of 1-10V systems * Suitable for switching by PIR, Microwave or Photocell

Product specifications
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
Silver
Voltage type
AC
Nominal voltage
110 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming programmable
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Beam angle
41-80° - Wide beam
Rated lifetime L70/B50 at 25 °C
50000 h
Degree of protection (IP)
IP65
Impact strength
IK10
Protection class according to IEC 61140
I
Rated ambient temperature according to IEC 62722-2-1
-25 - 40 °C
Max. system power
148.2 W
Colour of light
White
Colour temperature
5000 - 5000 K
Colour rendering index CRI
70-79
Power factor
0.99
Width
125 mm
Height/depth
130 mm
Length
880 mm
Nominal current
700 - 700 mA
Colour consistency (McAdam ellipse)
SDCM6
Colour of light adjustable
No
Beam angle adjustable
No
Luminous flux adjustable
No
more specifications
