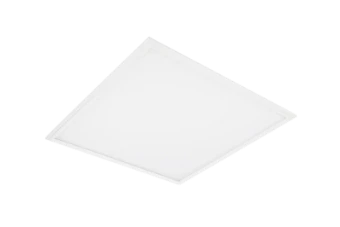

ATMOS 38W LED panel, IP20, 600x600mm, White, 4000K

Add to selection
General information
Ordercode YESSS
2244-4210
Product code
RAM40406060-01
EAN code
05391370051835
Product group
Ceiling-/wall luminaire
Brand
Robus
Serie
LED Panels
Type
Atmos
ATMOS 38W LED panel, IP20, 600x600mm, White, 4000K ATMOS 38W LED panel, IP20, 600x600mm, White, 4000K
STOCK
IN STOCK
8 piece
Product description

* The diversity of installations suitable for these high quality LED light panels is almost limitless * They look great with their clean and stylish lines and are exceptionally efficient, making enormous savings in electricity costs * This great quality, high specification range of panels delivers excellent performance and will provide payback return on investment in very short time periods * They replace traditional T8 and T5 lay-in modular’s to provide energy efficient, but perhaps more importantly, low maintenance solutions where constant replacement of fluorescent tubes and cleaning of the fitting can be avoided * They will help enable the building to achieve a low carbon footprint and comply with current and foreseeable Building Regulation efficacy requirements * Note: all the versions are equipped with TP(a) rated diffuser, except RAM40403012-01 which is TP(b) rated

Product specifications
Suitable for suspended mounting
Yes
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, opal
Voltage type
AC
Nominal voltage
220 - 240 V
Type of control gear
LED operating device current-controlled
With control gear
Yes
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Beam angle
> 80° - Extreme wide beam
Rated lifetime L70/B50 at 25 °C
50000 h
Impact strength
IK06
Protection class according to IEC 61140
II
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
With movement sensor
No
With light sensor
No
Max. system power
38.3 W
Colour of light
White
Colour temperature
4000 - 4000 K
Colour rendering index CRI
80-89
Power factor
0.97
Width
595 mm
Height/depth
10 mm
Length
595 mm
Nominal current
170 - 170 mA
Unified Glare Ratio (UGR)
21.2
Colour of light adjustable
No
Operation by Bluetooth
No
more specifications
