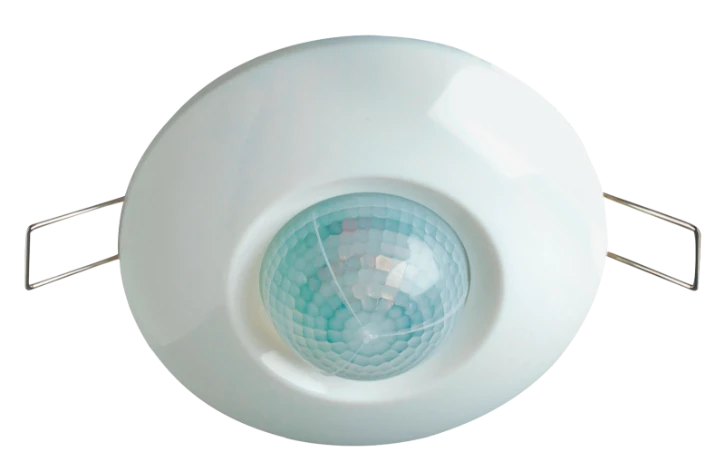

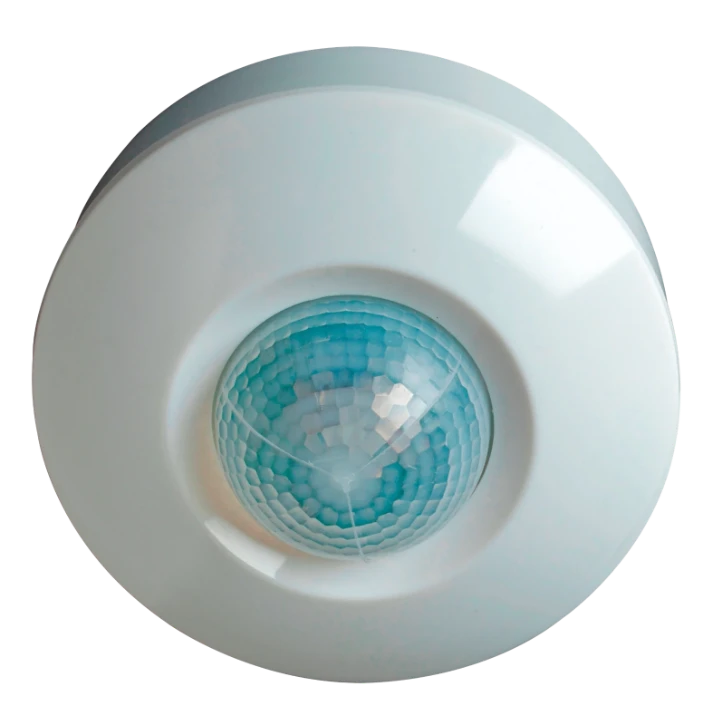

PROTON UNIVERSAL 360 Degree PIR, Recessed/Surface, 106mm, IP20, White
* Suitable for both surface and recessed indoor applications * Injection moulded ABS body - impact resistant * Plug in terminal block and sensor module * Large terminals accept 2 x 1.5mm² conductors in each terminal; facility to loop in/loop out to parallel sensors or multiple fittings * Adjustable time delay of 10sec to 40min ensures that lighting is switched off with required delay * Adjustable lux setting of 10 to 2000lx * Detection range 360°, detection distance 10m at 2.8m mounting height * Passive infra-red; ensures light is switched on when sensor detects movement of heat, therefore lighting is switched off when the area is vacated and minimize false/unwanted triggering * Adjustable passive photocell; inhibits switching where natural light is sufficient * High load contact rating; allows numerous fittings to be switched * Maximum LED load of 300W * Maximum Fluorescent load of 600W * Maximum Resistive load of 2000W * IP rating: surface mounted IP44, recessed IP20
