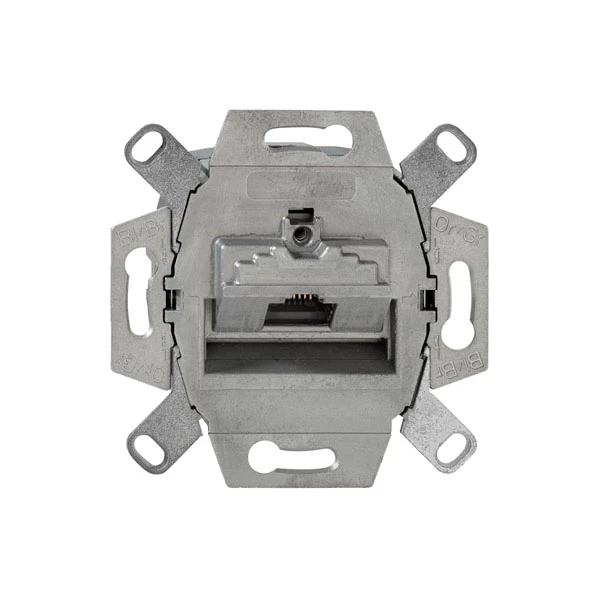

Data communication connection box copper (twisted pair) Rutenbeck
Add to selection
General information
Ordercode YESSS
3066-1555
Product code
136104030
EAN code
04043921657164
Product group
Data communication connection box copper (twisted pair)
Brand
Rutenbeck
Product specifications
Surface mounting
No
Duct installation
Yes
Floor box/subfloor mounted
No
Type of fastening
Screwing
Assembly arrangement
Basic element
Type of connector
RJ45 8(8)
With buses/couplings
Yes
Suitable for number of connectors
1
Category
6A (IEC)
Colour
Grey
RAL-number
0
Connection type
LSA
Shielded buses
Yes
Shielded housing
Yes
Separate earthing connection
Yes
With label space
No
Compatible with third-party covers
Yes
Separate strain relief
Yes
Mounting method shielding connection
Screw
Outlet direction
Inclined
With dust cover
No
Degree of protection (IP)
IP20
Mechanical coding
No
Colour coding
Yes
Device width
70.4 mm
Device height
70.4 mm
Device depth
45 mm
Flush-mounted installation
Yes
With terminal resistor
No
Product information
