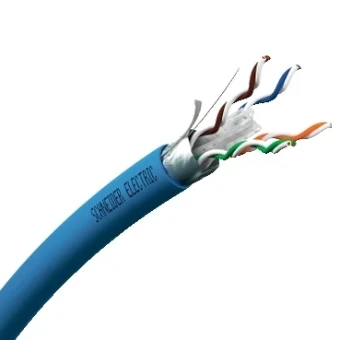

Actassi Cable LAN F/UTP 4P Cat6<sub>A</sub> Euroclass C 550MHz LSZH

Add to selection
General information
Ordercode YESSS
3019-4300
Product code
VDICC63X218
EAN code
03606481320261
Product group
Data and communication cable
Brand
Schneider Electric
Serie
Actassi for Europe
Type
VDICC63X218
Actassi Cable LAN F/UTP 4P Cat6<sub>A</sub> Euroclass C 550MHz LSZH Actassi Cable LAN F/UTP 4P Cat6<sub>A</sub> Euroclass C 550MHz LSZH 50
STOCK
IN STOCK
0 piece
Product description

Dit apparaat is een netwerkkabel, is blauw van kleur en wordt gebruikt voor gegevenscommunicatie. De netwerkkabel is gemaakt van PE (polyethyleen), massief blank koper, waardoor hij bestand en duurzaam is. De richtlijnen zijn 2006/95/EC - laagspanningsrichtlijn, 2011/65/EU - Ro.HS-richtlijn, 305/2011/EU - bouwproductenverordening. Het kabeltype is 4 paarkabels. Deze netwerkkabel is vrij van SVHC (zeer zorgwekkende stoffen). Hij voldoet aan de normen van EN 50174-2, IEC 60332-1, IEC 60754-1, IEC 60754-2, IEC 61034, IEC 61156-5, IEEE 802.3af, ISO/IEC 11801, ISO/IEC 14763-2. Zijn communicatie havenprotocol is Po.E 15W (Macht over Ethernet), Po.E+ 30W (Macht over Ethernet plus), Vo.IP (Stem IP). Het type van kabelafscherming is.F/UTP. Dit apparaat is kwikvrij en ook zwaar metaalvrij, en zorgt voortdurend voor het milieu en uw gezondheid.

Product specifications
Conductor surface
Bare
Diameter conductor
0.565 mm
Nominal cross section conductor
0.25 mm²
Conductor category
Class 1 = solid
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Specification core insulation
Polyethylene (PE)
Core identification
Colour + rings
Screen over stranding element
None
Screen over stranding
Foil
Longitudinal water blocking cable
No
Radial water blocking cable
No
Specification material outer sheath
Polyethylene (PE)
Colour outer sheath
Blue
Reaction-to-fire according to EN 13501-6: Class
Cca
Reaction-to-fire according to EN 13501-6: Smoke production
s1
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d1
Reaction-to-fire according to EN 13501-6: Acidity
a1
Halogen free according to EN IEC 60754-2
Yes
Low smoke according to EN IEC 61034-2
Yes
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
7.9 mm
Min. permitted bending radius, stationary application/permanent installation
31.6 mm
Permitted cable outer temperature during assembling/handling
0 - 50 °C
Permitted cable outer temperature after assembling without vibration
-20 - 60 °C
Category
6A (IEC)
NVP value
68 %
Suitable for underground installation
No
Conductor material
Copper
AWG size
23
Cable geometry
Round
more specifications
^
