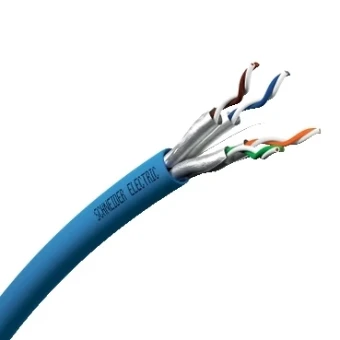

Actassi Cable LAN U/FTP 2x4P Cat6<sub>A</sub> Euroclass D 550MHz LSZH

Add to selection
General information
Ordercode YESSS
3019-4334
Product code
VDICD62X228
EAN code
03606481320193
Product group
Data and communication cable
Brand
Schneider Electric
Serie
Actassi for Europe
Type
VDICD62X228
Actassi Cable LAN U/FTP 2x4P Cat6<sub>A</sub> Euroclass D 550MHz LSZH Actassi Cable LAN U/FTP 2x4P Cat6<sub>A</sub> Euroclass D 550MHz LSZH
STOCK
IN STOCK
0 piece
Product description

Dit apparaat is een netwerkkabel, is blauw van kleur en wordt gebruikt voor gegevenscommunicatie. De netwerkkabel is gemaakt van PE (polyethyleen), massief blank koper, waardoor hij bestand en duurzaam is. De richtlijnen zijn 2006/95/EC - laagspanningsrichtlijn, 2011/65/EU - Ro.HS-richtlijn, 305/2011/EU - bouwproductenverordening. Het kabeltype is 2x4 ver*draaien-parenkabel. Deze netwerkkabel is vrij van SVHC (zeer zorgwekkende stoffen). Het voldeed goed aan de norm van ANSI/TIA/EIA-568-C.2, EN 50173-1, EN 50174-1. Zijn communicatie havenprotocol is Po.E 15W (Macht over Ethernet), Po.E+ 30W (Macht over Ethernet plus), Vo.IP (Stem IP). Het afschermingstype is.U/FTP. Dit apparaat is kwikvrij en ook zwaar metaalvrij, en zorgt voortdurend voor het milieu en uw gezondheid.

Product specifications
Conductor surface
Bare
Diameter conductor
0.56 mm
Nominal cross section conductor
0.25 mm²
Conductor category
Class 1 = solid
Number of cores
16
Number of stranding elements
8
Stranding element
Pairs
Specification core insulation
Polyethylene (PE)
Core identification
Colour
Screen over stranding element
Foil
Screen over stranding
None
Longitudinal water blocking cable
No
Radial water blocking cable
No
Specification material outer sheath
Polyethylene (PE)
Colour outer sheath
Blue
Reaction-to-fire according to EN 13501-6: Class
Dca
Reaction-to-fire according to EN 13501-6: Smoke production
s2
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
d2
Reaction-to-fire according to EN 13501-6: Acidity
a1
Halogen free according to EN IEC 60754-2
Yes
Low smoke according to EN IEC 61034-2
Yes
Oil resistant according to EN IEC 60811-404
No
Outer diameter approximate
7.7 mm
Permitted cable outer temperature during assembling/handling
0 - 50 °C
Permitted cable outer temperature after assembling without vibration
-20 - 60 °C
Category
6A (IEC)
NVP value
76 %
Suitable for underground installation
No
Conductor material
Copper
AWG size
23
Cable geometry
Round
more specifications
^
