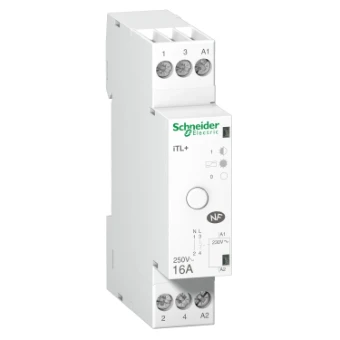

Latching relay Schneider Electric
Add to selection
General information
Ordercode YESSS
3121-1958
Product code
A9C15032
EAN code
03606480376979
Product group
Latching relay
Brand
Schneider Electric
Product specifications
Function
Mechanical switch
Mounting method
DIN rail
Width in number of modular spacings
1
Built-in depth
43.5 mm
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Control voltage 1
230 - 230 V
Type of control voltage 1
AC
Frequency control voltage 1
50 - 50 Hz
Rated switch current
16 A
Supply voltage
250 - 250 V
Voltage type (supply voltage)
AC
Max. incandescent lamp load
2900 W
Max. load fluorescent lamp
2900 VA
Max. load fluorescent lamp (parallel compensated)
2900 VA
Max. switching current (cos phi = 0.6)
2900 A
Suitable for manual operation
Yes
