General information

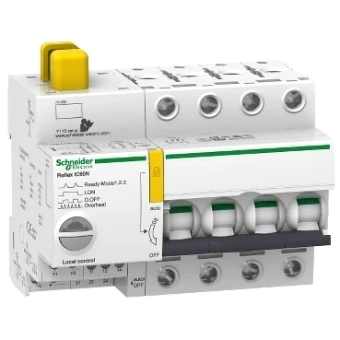

Reflex iC60N - Installatieautomaat 4P - 25A - B-Karakteristiek -
Reflex iC60N - Installatieautomaat 4P - 25A - B-Karakteristiek - TI24-
Ordercode YESSS
1667-7178
Product code
A9C61425
EAN code
03606480455551
Product group
Miniature circuit breaker (MCB) with auxiliary device
Brand
Schneider Electric
Serie
Acti9 Reflex iC60
Type
Installatieautomaat met nevenappara
Product description
It is a 4P circuit-breaker with protected poles, 25 A rated current and B tripping curve. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 220VAC to 240VAC, and 10kA at 380VAC to 415VAC. It allows to execute remote control, to indicate the state of the control circuit and circuit-breaker state information, to connect it to the Acti 9 Smartlink thanks to the prefabricated cables.
Product specifications
Release characteristic
B
Number of poles
4
Rated current
25 A
Rated voltage
415 V
Rated short-circuit breaking capacity according to IEC 60947-2
10 kA
Voltage type
AC
Current limiting class
0
Concurrently switching neutral conductor
No
Overvoltage category
4
Pollution degree
3
Width in number of modular spacings
6.5
Built-in depth
44.5 mm
Additional equipment attached at delivery
Remote drive
Rated switch current auxiliary device
1 A
Rated voltage auxiliary device
230 V
Control voltage type auxiliary equipment
AC
Degree of protection (IP)
IP20
Frequency
50 - 60 Hz
Construction size according to DIN 43880
3
