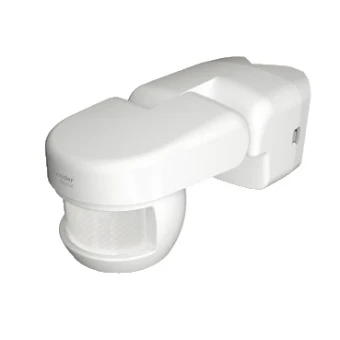

Inbouw bewegingsmelder - ARGUS standard outdoor 120° - Polarwit

Add to selection
General information
Ordercode YESSS
1533-8188
Product code
CCT56P004
EAN code
03606480145155
Product group
Movement sensor/presence detector complete
Brand
Schneider Electric
Serie
ARGUS standard movement detectors
Type
Bewegingsschakelaar compleet
Inbouw bewegingsmelder - ARGUS standard outdoor 120° - Polarwit Inbouw bewegingsmelder - ARGUS standard outdoor 120° - Polarwit
STOCK
IN STOCK
0 piece
Product description

Inbouw bewegingsmelder - ARGUS standard 120° outdoor PIR. Elektronische bewegingsmelder buitenshuis. 120° oppervlaktebewaking voor kleinere voorzijden en secties van de woning. Hoge kwaliteit infraroodsensor en componenten. Gemak en beveiliging: reageert op alle bezoekers of indringers door het licht automatisch AAN en UIT te zetten. Gebruiksvriendelijk en energiebesparend met snelle instellingen voor het inschakelen van tijd en lichtgevoeligheidsniveaus. Beschermd tegen UV, stof, zware regenval en waterbescherming. Ongewenste gebieden kunnen uit het detectiebereik worden gewist. Netspanning: AC 220-240 V, 50 Hz. Max. schakelstroom: 10 A, AC 220-240 V, cos Phi 0,6. Nominaal vermogen: Gloeilampen AC 230 V: 1000 W. halogeenlampen AC 230 V: 900 W. halogeen met elektronische transformator: 250 VA. Halogeen met ijzerkerstransformator: 500 VA. Tl-buizen: 200 VA. Capacitieve lasten (teststroom 6 A): 21 µF. Capacitieve lasten (teststroom van 10 A): 14 µF. Compacte fluorescentielampen: 3 x 23 W

Product specifications
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch on
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Networkable
No
Scan angle
120 °
Optimum mounting height
2.5 m
Staircase light controller
No
Bridging switch
No
Max. reach sideways
6 m
Max. reach frontally
12 m
Diameter reach on floor
7.4 m
Suitable for wireless transmission
No
Remote operation
No
With remote control
No
Response value sensitivity adjustable
No
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
No
Suitable for ceiling mounting
No
Dim function with dimmer basic element
No
Mounting method
Surface mounted
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Anti-bacterial treatment
No
Colour
White
Transparent
No
Degree of protection (IP)
IP55
Impact strength
IK02
Voltage type
AC
Frequency
50 - 50 Hz
Min. switch-on time
3 s
Max. duty cycle
30 min
Switch-off delay
1800 s
Switch-on delay
0 s
Detection angle horizontal
0 - 120 °
Pivoting range sensor, horizontal
-80 - 80 °
Pivoting range sensor, vertical
-55 - 95 °
Response value luminosity
5 - 2000 lx
Max. switching power
1000 W
Suitable for C-load
No
Max. starting current
10 A
Min. starting current
0 A
Substation input
No
With alarm function
No
Width
140 mm
Height
80 mm
Depth
75 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
