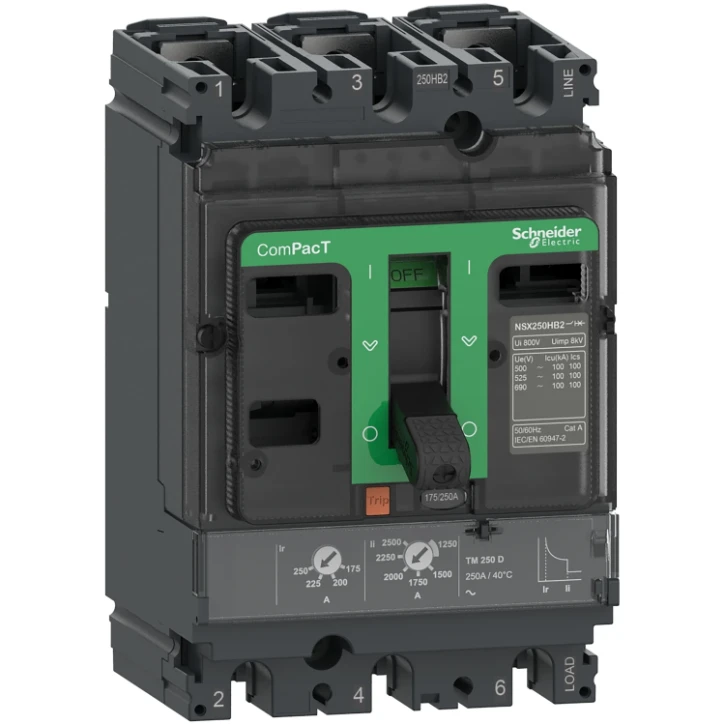

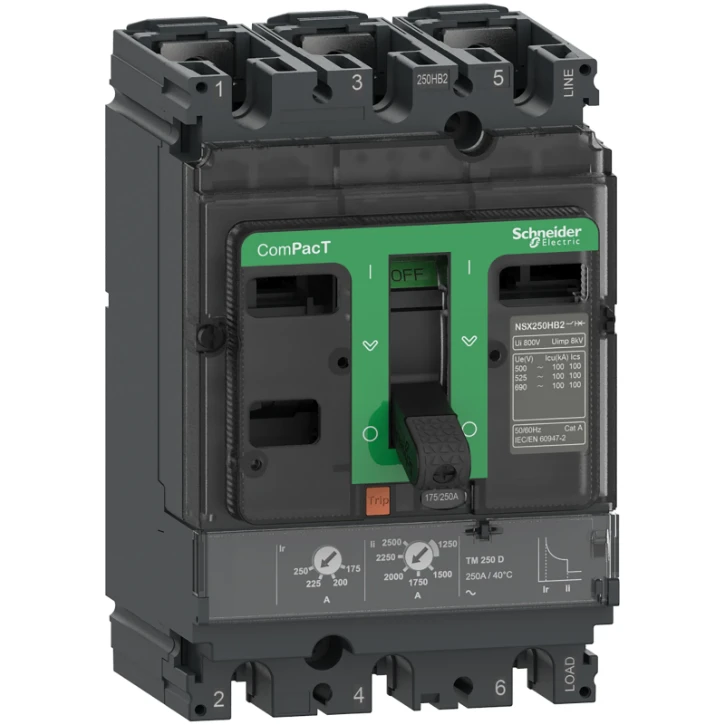

ComPacT - Vermogenschakelaar - NSX250N - 50kA - AC -

Add to selection
General information
Ordercode YESSS
3074-4172
Product code
C25N3TM250
EAN code
03606481997869
Product group
Power circuit-breaker for trafo/generator/installation protection
Brand
Schneider Electric
Serie
ComPacT NSX, new generation
Type
Moulded case circuit breaker (MCCB)
ComPacT - Vermogenschakelaar - NSX250N - 50kA - AC - ComPacT - Vermogenschakelaar - NSX250N - 50kA - AC - 3P3D - 250A - TMD
STOCK
IN STOCK
0 piece
Product description

Deze ComPacT NSX250N is een complete 3P 3d vaste stroomonderbreker die is ontworpen om de ruimte en de onderbrekingscapaciteit te optimaliseren. Het is de optimale keuze voor alle standaard- en specifieke toepassingen. De uitschakelcapaciteit (Icu) is 50 kA rms bij 415VAC 50/60Hz. De operationele spanning is 690VAC 50/60Hz. In dit product is een thermisch-magnetische trip unit (TMD) met een 250A classificatie geïntegreerd. De TMD-uitschakeleenheid biedt een instelbare thermische overbelastingsbeveiliging en een vaste magnetische beveiliging. Deze 3-polige versie (105 x 161 x 86 mm) wordt geleverd met diverse optionele functies en accessoires. Het voldoet aan internationale normen (IEC 60947), CCC, EAC en maritieme specificaties. ComPacT NSX250N maakt deel uit van de EcoStruxure Power-architectuur van Schneider Electric.

Product specifications
Rated permanent current Iu
250 A
Rated voltage
690 - 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
50 kA
Overload release current setting
175 - 250 A
Adjustment range undelayed short-circuit release
1250 - 2500 A
Integrated earth fault protection
No
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Yes
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Wing knob
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP40
With integrated under voltage release
No
more specifications
