Mureva - Verdeler met DIN-rail + WCD - 1x18 modulen
- 0056-3110
- |
- 13188
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

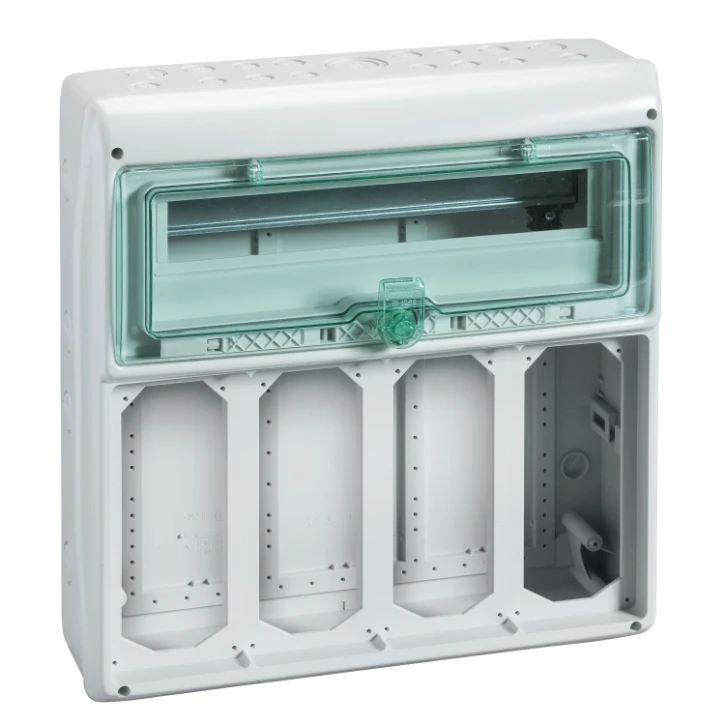

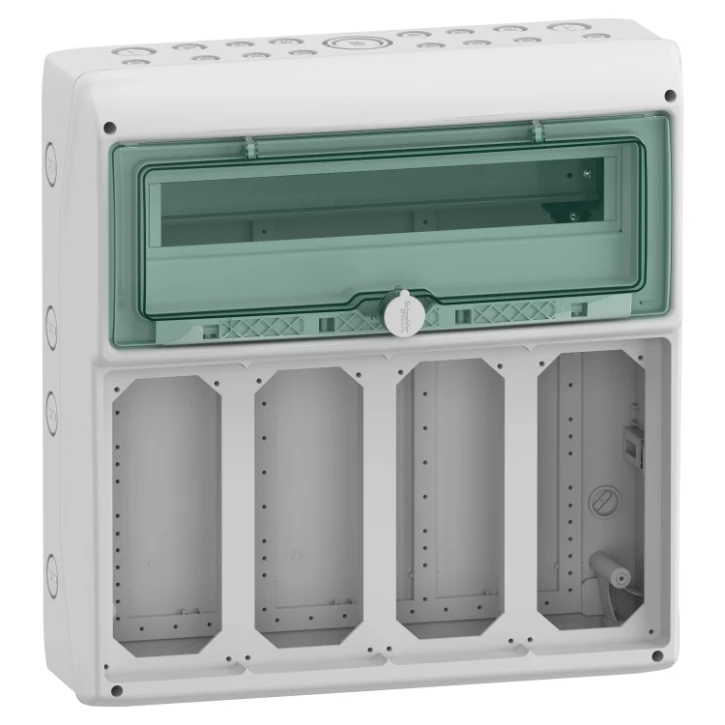

Mureva - Verdeler met DIN-rail + WCD - 1x18 modulen
Mureva - Verdeler met DIN-rail + WCD - 1x18 modulen - 4 WCD openingen
Ordercode YESSS
0056-3110
Product code
13188
EAN code
03303430131885
Product group
Small distribution board
Brand
Schneider Electric
Serie
Mureva Enclosure
Type
Installatiekast met DINrail leeg
Product description
The IP degree of protection is IP65.
Product specifications
Mounting method
Surface mounted
Number of rows
1
Width in number of modular spacings
18
Type of covering
Door
Cover model
Closed
Transparent cover/door
Yes
Housing material
Plastic
Height
460 mm
Width
448 mm
Depth
160 mm
Inner depth
91 mm
DIN-rail
Yes
With mounting plate
No
Extension possible
Yes
EMC-version
No
Colour
Grey
RAL-number
7035
Degree of protection (IP)
IP65
With lock
No
Type of closure
Other
Earthing terminal block
No
Neutral terminal block
No
Signal passing door
Yes
Type of door
Single
Sealable
Yes
With N-disconnect slide
No
Number of openings for socket outlets
4
