Thorsman - Kabelwartel ISO - M20 - Ø6-12mm - Grijs
- 1063-5679
- |
- ISM71503
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

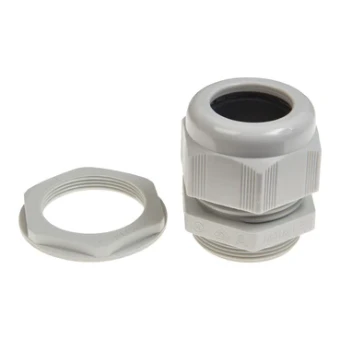

Thorsman - Kabelwartel ISO - M20 - Ø6-12mm - Grijs
Thorsman - Kabelwartel ISO - M20 - Ø6-12mm - Grijs
Ordercode YESSS
1063-5679
Product code
ISM71503
EAN code
03606480077203
Product group
Cable gland
Brand
Schneider Electric
Serie
PanelSeT CRN
Type
Wartel kabelbuisinvoer
Product description
Kabelwartel met uitwendige stelvoorziening en metrische uitwendige plaat. borgmoer met inwendige metriek of voor gebruik met kabelwartels in onaangeboorde gaten. Kabelwartel met moer en neopreenafdichting voor één kabel.
Product specifications
Thread type
Metric
Nominal thread size metric/PG
20
Nominal thread size inch/gas pipe thread
3/4 inch
Pitch thread
2.5 mm
Thread length
9 mm
Wrench width
20 mm
Hexagon angular dimension
14 mm
Suitable for cable diameter
6 - 12 mm
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
Yes
Degree of protection (IP)
IP68
Shock resistant
Yes
Colour
Grey
RAL-number
7035
Bend radius protection/trumpet flare
Yes
With locknut
Yes
Snapping in opening
No
Model
Straight
Multi seal area
Yes
Flat cable coupling
No
With strain relief
Yes
Type of sealing
Membrane
Separable screw gland
Yes
Working temperature
-30 - 80 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
No
Screened
No
Pressure-compensating
No
