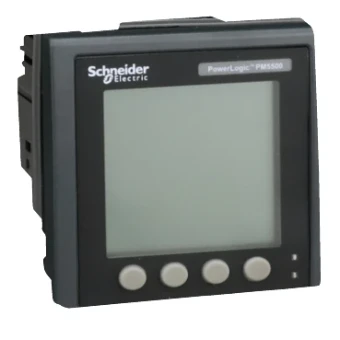

PM5560 meetcentrale 1Mod2Eth - 63e H - 1,1M 4DI/2DO 52

Add to selection
General information
Ordercode YESSS
1873-7461
Product code
METSEPM5560
EAN code
03606480614064
Product group
Multifunction measuring instrument
Brand
Schneider Electric
Serie
PowerLogic™ PM5000 Power Meters
Type
Elektriciteitsmeter
PM5560 meetcentrale 1Mod2Eth - 63e H - 1,1M 4DI/2DO 52 PM5560 meetcentrale 1Mod2Eth - 63e H - 1,1M 4DI/2DO 52 alarm - paneelm
STOCK
IN STOCK
0 piece
Product description

Dit apparaat is een verzonken energiemeter met een 96mm bij 96mm verlicht LCD-display. De meter biedt een nauwkeurigheid van klasse 0,2s volgens de IEC 62053-22 norm en 128 monsters per cyclus. De meter meet energie, actief en reactief vermogen, spanning, stroom, frequentie, vermogensfactor en tot de 63e harmonische. Inclusief 1,1 MB geheugen voor maximaal 14 selecteerbare parameters met configureerbare interval en duur. Deze meter beschikt ook over een directe bewaking van de nulstroom. De meter werkt in een 50Hz of 60Hz netwerk en werkt met een voedingsspanning van 100 tot 480V AC en 125 tot 250V DC. De nominale stroom voor deze meter is 1A of 5A input en het ondersteunt 1P+N, 3P en 3P+N configuraties. Het te meten spanningsbereik tussen de fasen is 20 tot 690V AC bij 45 tot 65 Hz. Meetbereik tussen fase en neutraal is 20 tot 400V AC bij 45 tot 65 Hz. Het communicatieprotocol is Modbus RTU en ASCII 2-draads met RS485-poortondersteuning plus Modbus TCP/IP, Ethernet/IP en BACnet/IP op

Product specifications
Ampere meter
Yes
Reactive power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Voltmeter
Yes
Effective power measurement device
Yes
Accuracy class active energy according to IEC 62053-22
0.2S
Accuracy class reactive energy according to IEC 62053-23
Other
Sampling frequency
12800 Hz
Number of voltage measurement inputs
4
Number of current measurement inputs
8
Voltage type (supply voltage)
AC/DC
Supply voltage AC 50 Hz
100 - 480 V
Supply voltage AC 60 Hz
100 - 480 V
Supply voltage DC
125 - 250 V
Measuring range for frequency
45 - 65 Hz
Display
LCD
Remote display
No
Display resolution (horizontal)
128 px
Display resolution (vertical)
128 px
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
2
Number of digital outputs
4
Number of Ethernet connections
0
Supporting protocol for IEC 61850 Ethernet
No
Supporting protocol for OPC UA PubSub
No
Supporting protocol for PROFIBUS
No
Supporting protocol for MODBUS
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for other bus systems
Yes
With audit logging (audit log)
Yes
With firmware signature
No
With logging of security events (security event log)
Yes
With Role Based Access Control (RBAC)
No
Web server with HTTPS transfer protocol
Yes
Width
112 mm
Height
101.2 mm
Depth
89 mm
Degree of protection (IP), front side
Other
Model
Measurement transformer
Pole type
Three conductor/four conductor
Mounting method
Front mounting
Harmonics measurement
Yes
Apparent power
Yes
Power factor
Yes
Step angle (cos phi)
No
Measured value memory
Yes
Measurement type load profile
Yes
Calibrated
No
Pulse output
Optical
Nominal current (In)
5 A
Max. current (Imax)
10 A
With communication interface KNX
No
Wth communication interface M-Bus
No
With communication interface RS-485
Yes
