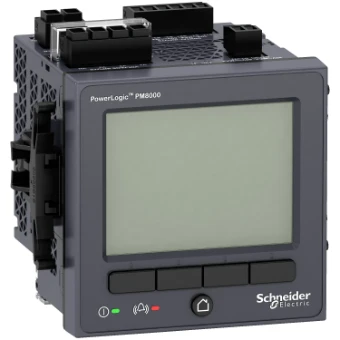

Multifunction measuring instrument Schneider Electric
Add to selection
General information
Ordercode YESSS
3111-9441
Product code
METSEPM8110
EAN code
03606486874721
Product group
Multifunction measuring instrument
Brand
Schneider Electric
Product specifications
Ampere meter
Yes
Reactive power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Voltmeter
Yes
Effective power measurement device
Yes
Accuracy class active energy according to IEC 62053-22
0.2S
Accuracy class reactive energy according to IEC 62053-23
Other
Sampling frequency
12800 Hz
Number of voltage measurement inputs
4
Number of current measurement inputs
8
Voltage type (supply voltage)
DC
Supply voltage AC 50 Hz
0 - 0 V
Supply voltage AC 60 Hz
0 - 0 V
Supply voltage DC
20 - 60 V
Measuring range for frequency
42 - 69 Hz
Remote display
No
Display resolution (horizontal)
320 px
Display resolution (vertical)
240 px
Number of analogue inputs
0
Number of analogue outputs
0
Number of digital inputs
3
Number of digital outputs
1
Number of Ethernet connections
2
Supporting protocol for IEC 61850 Ethernet
Yes
Supporting protocol for OPC UA PubSub
No
Supporting protocol for PROFIBUS
No
Supporting protocol for MODBUS
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for other bus systems
Yes
With audit logging (audit log)
Yes
With firmware signature
No
With logging of security events (security event log)
Yes
With Role Based Access Control (RBAC)
No
Web server with HTTPS transfer protocol
Yes
Width
96 mm
Height
96 mm
Depth
77.5 mm
Degree of protection (IP), front side
Other
