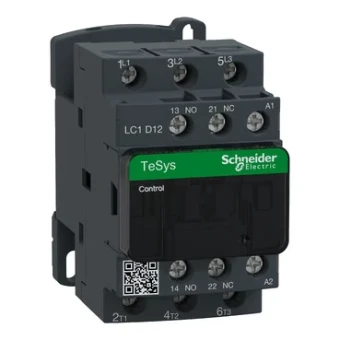

Magneetschakelaar 12a 1s+1o 230v 50/60hz
Add to selection
General information
Ordercode YESSS
0058-4932
Product code
LC1D12P7TQ
EAN code
03389110349313
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys Deca Advanced
Type
Magneetschakelaar
Magneetschakelaar 12a 1s+1o 230v 50/60hz
Magneetschakelaar 12a 1s+1o 230v 50/60hz
STOCK
IN STOCK
0
piece
Product description
TeSys deca contactor, 3 polen (3NO), voor motorbesturingstoepassingen tot 12A/690V AC-3/3e (4kW@400V). Voorzien van een 230V 50/60Hz AC-spoel, ingebouwde hulpcontacten 1NO+1NC (NC-spiegelgecertificeerd), aansluiting met schroefklemmen. Voor operationele snelheden tot 3600 cycli/uur en omgevingen tot 60°C, biedt deze een hoge betrouwbaarheid en duurzaamheid. Compact (45 mm breed), DIN-rail montage of schroefbevestiging. Verpakking van 10 eenheden. Multi-standaarden gecertificeerd (IEC, UL, CSA, CCC, EAC, Marine), Green Premium-conform (RoHS/REACh).
Product specifications
Rated control supply voltage AC 50 Hz
230 - 230 V
Rated control supply voltage AC 60 Hz
230 - 230 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
25 A
Rated operation current Ie at AC-3, 400 V
12 A
Rated operation power at AC-3, 400 V
5.5 kW
Rated operation current Ie at AC-4, 400 V
7.5 A
Rated operation power at AC-4, 400 V
3 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Product information
