TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
Add to selection
General information
Ordercode YESSS
0058-7695
Product code
LC1D256M7
EAN code
03389110804867
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys Deca Advanced
Type
Magneetschakelaar
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V 25A - Stuurspanning: 220
STOCK
IN STOCK
0
piece
Product description

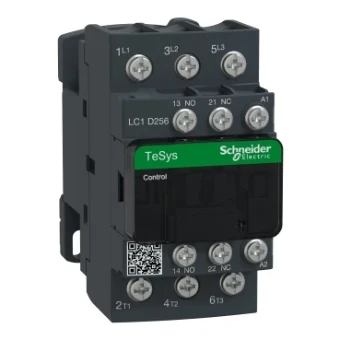

TeSys D contactor, 3 poles (3NO), for motor control applications up to 25A/690V AC-3 (11kW@400V).
Product specifications
Rated control supply voltage AC 50 Hz
220 - 220 V
Rated control supply voltage AC 60 Hz
220 - 220 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
40 A
Rated operation current Ie at AC-3, 400 V
25 A
Rated operation power at AC-3, 400 V
11 kW
Rated operation current Ie at AC-4, 400 V
12 A
Rated operation power at AC-4, 400 V
5.5 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Other
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Product information
