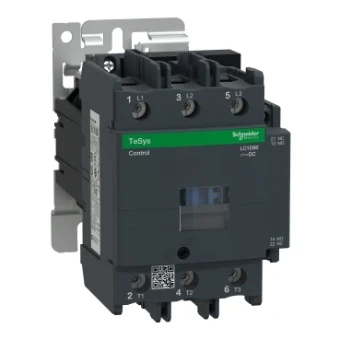

TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
Add to selection
General information
Ordercode YESSS
0059-0839
Product code
LC1D80FW
EAN code
03389110440614
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys Deca Advanced
Type
Magneetschakelaar
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V 80A - Stuurspanning: 110
STOCK
IN STOCK
0
piece
Product description
TeSys deca contactor, 3 polen (3NO), voor motorbesturingstoepassingen tot 80A/690V AC-3/AC-3e (37kW@400V). Voorzien van een breed bereik 110V DC-spoel, ingebouwde hulpcontacten 1NO+1NC (NC-spiegel-gecertificeerd), voedingsaansluiting met schroefklemmen, besturingsaansluiting met schroefklemmen. Voor operationele snelheden tot 3600 cycli/uur en omgevingen tot 60°C, biedt deze een hoge betrouwbaarheid en duurzaamheid. Compact (85 mm breed), DIN-rail montage of schroefbevestiging. Multi-standaarden gecertificeerd (IEC, UL, CSA, CCC, EAC, Marine), Green Premium-compatibel (RoHs/Reach).
Product specifications
Rated control supply voltage DC
110 - 110 V
Voltage type for actuating
DC
Rated operation current Ie at AC-1, 400 V
125 A
Rated operation current Ie at AC-3, 400 V
80 A
Rated operation power at AC-3, 400 V
37 kW
Rated operation current Ie at AC-4, 400 V
32 A
Rated operation power at AC-4, 400 V
15 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
