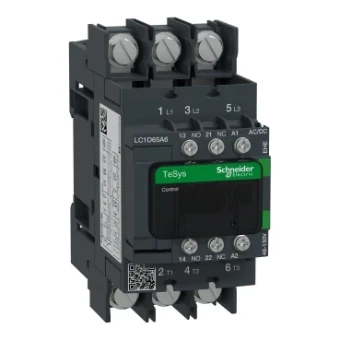

Contactor TeSys Deca 3P 65A 440V AC3 48-130V ACDC Spoel
Add to selection
General information
Ordercode YESSS
3133-0068
Product code
LC1D65A6EHE
EAN code
03606489493424
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys Deca Advanced
Type
Power contactor, AC switching
Contactor TeSys Deca 3P 65A 440V AC3 48-130V ACDC Spoel
Contactor TeSys Deca 3P 65A 440V AC3 48-130V ACDC Spoel ringogen
STOCK
IN STOCK
0
piece
Product description
Tesys deca-contactor, 3 polen (3NO), voor motorsturingstoepassingen tot 65A/690V AC-3/3e (30kW@400V). Het biedt een laag verbruik 48-130V AC/DC spoel met elektronische bediening, 1NO+1NC ingebouwde hulpcontacten (NC spiegel-gecertificeerd), aansluiting door beugelring klemmen. Voor werksnelheden tot 3600 cycli/uur en omgevingen tot 60°C biedt deze een hoge betrouwbaarheid en duurzaamheid voor veeleisende toepassingen. Compact (55mm breed), DIN-rail montage of schroefbevestiging. Gecertificeerde meerdere normen (IEC, UL, CSA, CCC, EAC, Marine), Grene premium conform (RoHS/REACh).
Product specifications
Rated control supply voltage AC 50 Hz
48 - 130 V
Rated control supply voltage AC 60 Hz
48 - 130 V
Rated control supply voltage DC
48 - 130 V
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-1, 400 V
80 A
Rated operation current Ie at AC-3, 400 V
65 A
Rated operation power at AC-3, 400 V
30 kW
Rated operation current Ie at AC-4, 400 V
65 A
Rated operation power at AC-4, 400 V
30 kW
Rated operation power NEMA
29.8 kW
Suitable for distribution board
Yes
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
