Vigirex - RH21M - Aardlekschakelaar - 0,03/0,3A Direct - 220-240V
Add to selection
General information
Ordercode YESSS
0056-4148
Product code
56163
EAN code
03303430561637
Product group
Residual current monitoring relay
Brand
Schneider Electric
Serie
VigiPacT
Type
Verschilstroomrelais
Vigirex - RH21M - Aardlekschakelaar - 0,03/0,3A Direct - 220-240V
Vigirex - RH21M - Aardlekschakelaar - 0,03/0,3A Direct - 220-240V AC
STOCK
IN STOCK
0
piece
Product description

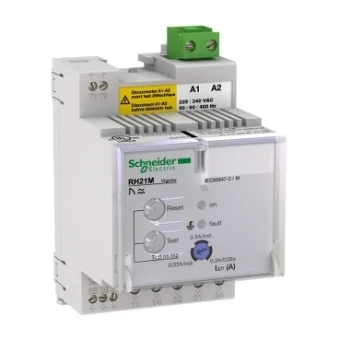

RH21M is a DIN rail mounting residual current protection relay. The operational supply voltage is from 220 VAC to 240 VAC 50/60Hz. It must be associated with a compatible Schneider Electric toroid.
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Function
For AC-current system
Response value amperage 1
30 - 30 mA
Response value amperage 2
300 - 300 mA
Min. adjustable delay-on energization time
0 s
Max. permitted delay-on energization time
0.15 s
Indication of difference current
No
Error registration possible
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
1
Width
54 mm
Height
97 mm
Depth
74 mm
