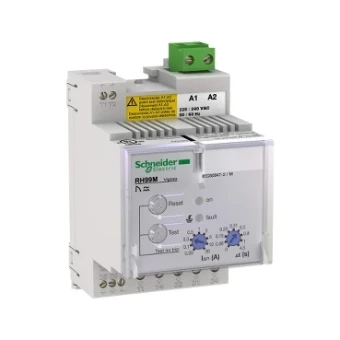

Vigirex - RH99M - Aardlekschakelaar - 0,03A Direct -0.03-30A -
Add to selection
General information
Ordercode YESSS
0056-4175
Product code
56190
EAN code
03303430561903
Product group
Residual current monitoring relay
Brand
Schneider Electric
Serie
VigiPacT
Type
Verschilstroomrelais
Vigirex - RH99M - Aardlekschakelaar - 0,03A Direct -0.03-30A -
Vigirex - RH99M - Aardlekschakelaar - 0,03A Direct -0.03-30A - 12-24VA
STOCK
IN STOCK
0
piece
Product description
RH99M is a DIN rail mounting residual current monitoring relay. The operational supply voltage is from 12VDC to 24VDC, or 12VAC to 48VAC 50/60Hz. It must be associated with a compatible Schneider Electric toroid.
Product specifications
Type of electric connection
Screw connection
With detachable clamps
No
Function
For mixed system
Response value amperage 1
0.03 - 30 mA
Min. adjustable delay-on energization time
0 s
Max. permitted delay-on energization time
4.82 s
Indication of difference current
No
Error registration possible
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
1
Width
54 mm
Height
97 mm
Depth
74 mm
Product information
