Vigirex - RHUs Aardlekbeveiliging - 0,03-30A - 0-5s - 240V
Add to selection
General information
Ordercode YESSS
3012-5878
Product code
LV481001
EAN code
03606485434704
Product group
Residual current monitoring relay
Brand
Schneider Electric
Serie
VigiPacT
Type
Verschilstroomrelais
Vigirex - RHUs Aardlekbeveiliging - 0,03-30A - 0-5s - 240V
Vigirex - RHUs Aardlekbeveiliging - 0,03-30A - 0-5s - 240V
STOCK
IN STOCK
0
piece
Product description

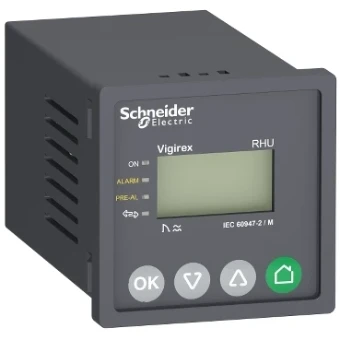

RHUs is a front panel mounting residual current protection relay. The operational supply voltage is 220/240VAC 50/60Hz, and the current sensitivity is from 30mA to 30A. The time delay is adjustable from 0 to 4.5s. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric toroid. It complies with IEC 60755, IEC 60947-2 annex M and IEC 60947-5-1 standards.
Product specifications
Type of electric connection
Plug-in connection
With detachable clamps
Yes
Function
For AC-current system
Response value amperage 1
0.03 - 30 mA
Min. adjustable delay-on energization time
0 s
Max. permitted delay-on energization time
4.5 s
Indication of difference current
Yes
Error registration possible
Yes
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
1
Width
72 mm
Height
72 mm
Depth
117 mm
