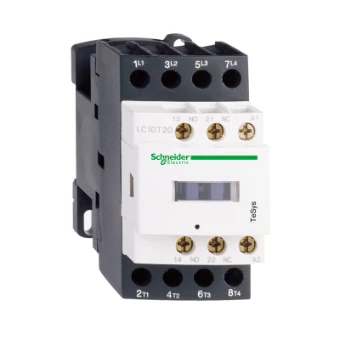

TeSys D - Contactor 2M+2V - HC: M+V - AC-1<=440V
Add to selection
General information
Ordercode YESSS
0058-5736
Product code
LC1D128M7
EAN code
03389110577488
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys Deca Advanced
Type
Magneetschakelaar
TeSys D - Contactor 2M+2V - HC: M+V - AC-1<=440V
TeSys D - Contactor 2M+2V - HC: M+V - AC-1<=440V 25A - Stuurspanning:
STOCK
IN STOCK
0
piece
Product description
TeSys D - Contactor 4M+2V - Voor niet-inductieve tot 25A/690V AC-1 belasting. Voorzien van een 220V 50/60Hz AC-spoel, ingebouwde hulpcontacten 1NO+1NC (NC-spiegelgecertificeerd), aansluiting met schroefklemmen. Voor operationele snelheden tot 3600 cycli/uur en omgevingen tot 60°C, biedt deze een hoge betrouwbaarheid en duurzaamheid. Compact (45 mm breed), DIN-rail montage of schroefbevestiging. Multi-standaarden gecertificeerd (IEC, UL, CSA, CCC, EAC, Marine), Green Premium-conform (RoHS/REACh).
Product specifications
Rated control supply voltage AC 50 Hz
220 - 220 V
Rated control supply voltage AC 60 Hz
220 - 220 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
25 A
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
2
Number of normally open contacts as main contact
2
