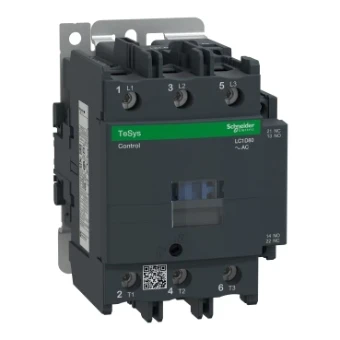

TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
Add to selection
General information
Ordercode YESSS
0059-0974
Product code
LC1D80U7
EAN code
03389110443097
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys Deca Advanced
Type
Magneetschakelaar
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V 80A - Stuurspanning: 240
STOCK
IN STOCK
0
piece
Product description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3 (37kW@400V).
Product specifications
Rated control supply voltage AC 50 Hz
240 - 240 V
Rated control supply voltage AC 60 Hz
240 - 240 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
125 A
Rated operation current Ie at AC-3, 400 V
80 A
Rated operation power at AC-3, 400 V
37 kW
Rated operation current Ie at AC-4, 400 V
32 A
Rated operation power at AC-4, 400 V
15 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Product information
