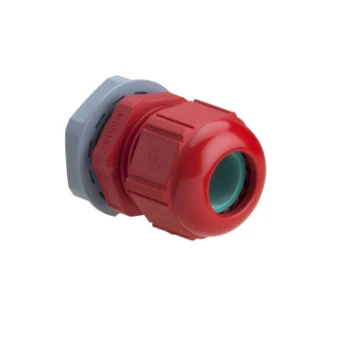

Cable gland Schneider Electric
Add to selection
General information
Ordercode YESSS
0892-1782
Product code
IMT36150
EAN code
03606480163494
Product group
Cable gland
Brand
Schneider Electric
Product specifications
Thread type
Metric
Nominal thread size metric/PG
20
Nominal thread size inch/gas pipe thread
3/4 inch
Pitch thread
2.5 mm
Thread length
9 mm
Wrench width
20 mm
Hexagon angular dimension
10 mm
Suitable for cable diameter
6 - 12 mm
Material
Plastic
Material quality
Polyamide (PA)
Surface protection
Untreated
Halogen free
Yes
Glass-fibre reinforced
Yes
Degree of protection (IP)
IP68
Shock resistant
Yes
Colour
Red
RAL-number
3000
Bend radius protection/trumpet flare
Yes
With locknut
Yes
Snapping in opening
No
Model
Straight
Multi seal area
Yes
Flat cable coupling
No
With strain relief
Yes
Type of sealing
Membrane
Separable screw gland
Yes
Operating temperature
0 - 960 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
No
Screened
No
