TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
Add to selection
General information
Ordercode YESSS
1127-8930
Product code
LC1D50AN7
EAN code
03389119408745
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys Deca Advanced
Type
Magneetschakelaar
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V
TeSys D - Contactor 3M - HC: M+V - AC-3<=440V 50A - Stuurspanning: 415
STOCK
IN STOCK
0
piece
Product description

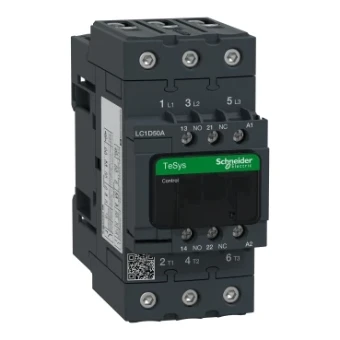

TeSys deca contactor, 3 polen (3NO), voor motorbesturingstoepassingen tot 50A/440V AC-3/3e (22kW@400V). Voorzien van een 415V 50/60Hz AC-spoel, ingebouwde hulpcontacten 1NO+1NC (NC-spiegelgecertificeerd), voedingsaansluiting met EverLink-BTR-schroefconnectoren, besturingsaansluiting met schroefklemmen. Voor operationele snelheden tot 3600 cycli/uur en omgevingen tot 60°C, biedt deze een hoge betrouwbaarheid en duurzaamheid. Compact (55 mm breed), DIN-rail montage of schroefbevestiging. Multi-standaarden gecertificeerd (IEC, UL, CSA, CCC, EAC, Marine), Green Premium-conform (RoHS/REACh).
Product specifications
Rated control supply voltage AC 50 Hz
415 - 415 V
Rated control supply voltage AC 60 Hz
415 - 415 V
Voltage type for actuating
AC
Rated operation current Ie at AC-1, 400 V
80 A
Rated operation current Ie at AC-3, 400 V
50 A
Rated operation power at AC-3, 400 V
22 kW
Rated operation current Ie at AC-4, 400 V
25 A
Rated operation power at AC-4, 400 V
11 kW
Suitable for distribution board
No
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
3
Product information
