TeSys Vario - Lastscheider/noodstop in behuizing - IP20 - 3M
Add to selection
General information
Ordercode YESSS
1781-8105
Product code
VC1GUN
EAN code
03389119413176
Product group
Switch disconnector (AC)
Brand
Schneider Electric
Serie
TeSys Vario
Type
Lastscheider
TeSys Vario - Lastscheider/noodstop in behuizing - IP20 - 3M
TeSys Vario - Lastscheider/noodstop in behuizing - IP20 - 3M - 20A
STOCK
IN STOCK
0
piece
Product description

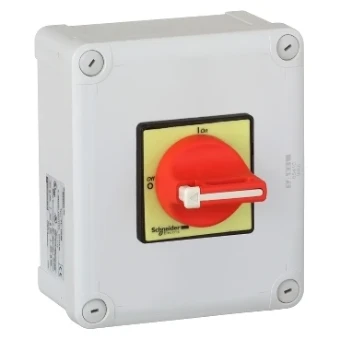

TeSys - Directstarter in behuizing met lastscheider - 3P - 20A/600V - Voor hoofd- en noodstopschakelingen in motortoepassingen tot en met 10hp@600V. Behuizing uitgerust met een 3-polig schakelaarlichaam Vario V1, rode draaihendel, gele voorplaat met O/I markering. Mogelijke bevestiging van 2 extra modules aan het interne schakelaarlichaam (hoofdpool, nulpool, aardingsmodule, hulpcontacten), afzonderlijk te bestellen. NEMA type 1 en type 12 behuizing, IP65 beveiliging, verzegelbaar, vergrendelbaar in O-Uit-positie. Hij voldoet aan de UL/CSA-normen, Green Premium-conform (RoHS/REACh).
Product specifications
Version as main switch
Yes
Version as maintenance-/service switch
No
Version as safety switch
No
Version as emergency stop installation
Yes
Version as reversing switch
No
Number of switches
1
Max. rated operation voltage Ue AC
690 V
Rated operating voltage
600 - 600 V
Rated permanent current Iu
25 A
Rated permanent current at AC-23, 400 V
21.8 A
Rated permanent current at AC-21, 400 V
32 A
Rated operation power at AC-3, 400 V
7.5 kW
Rated short-time withstand current lcw
0.384 kA
Rated operation power at AC-23, 400 V
11 kW
Conditioned rated short-circuit current Iq
10 kA
Number of poles
3
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Colour control element
Red
Type of control element
Short rotary handle
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP65
