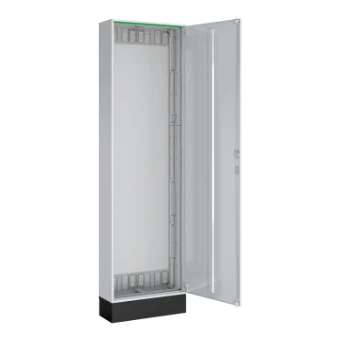

Empty cabinet Schneider Electric
Add to selection
General information
Ordercode YESSS
3109-0461
Product code
ABWRS212
EAN code
04015153850118
Product group
Empty cabinet
Brand
Schneider Electric
Product specifications
Mounting method
Floor installation
Type of covering
Door
Cover model
Closed
Type of door
Single
Transparent cover/door
No
With lock
No
Nominal current (In)
400 A
Height
1980 mm
Width
550 mm
Depth
210 mm
Built-in depth
210 mm
Inner depth
200 mm
Material plate thickness cabinet
1 mm
Material plate thickness door/cover
1 mm
Colour
White
RAL-number
9016
Number of modules
288
Number of rows
24
Width in number of modular spacings
24
Number of openings for flange plates
4
Extension possible
Yes
Number of conduit inlets
248
Housing material
Steel plate/plastic
Surface protection
Powder coating
With mounting plate
No
Suitable for outdoor use
No
Suitable for lightning protection
No
Degree of protection (IP)
IP44
Degree of protection (NEMA)
Other
Protection class according to IEC 61140
II
Impact strength
IK10
Circuit integrity
None
Cover with overpressure release
No
