SEP F04008G06 Kam 4f VORK 8p 17,8mm M6
- 3000-0267
- |
- F04008G06
43
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

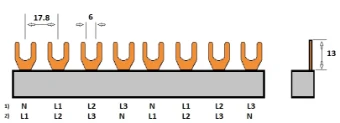

SEP F04008G06 Kam 4f VORK 8p 17,8mm M6
SEP F04008G06 Kam 4f VORK 8p 17,8mm M6
Ordercode YESSS
3000-0267
Product code
F04008G06
EAN code
08718959004360
Product group
Phase busbar
Brand
SEP Europe
Serie
BUS-LINE
Type
Doorverbindingsrail
Product description
SEP F04008G06 Kam 4f VORK 8p 17,8mm M6
Product specifications
Number of phases
4
Number of poles
8
Suitable for number of devices
2
Module width
18 mm
Cross section
10 mm²
Length
145 mm
Rated permanent current Iu
63 A
Type of electric connection
Fork
Insulated
Yes
Rated surge voltage
4 kV
Conditioned rated short-circuit current Iq
25 kA
Max. rated operation voltage Ue
500 V
Rated short-time withstand current lcw
25 kA
Suitable for devices with N-conductor
Yes
Suitable for devices with auxiliary switch
No
