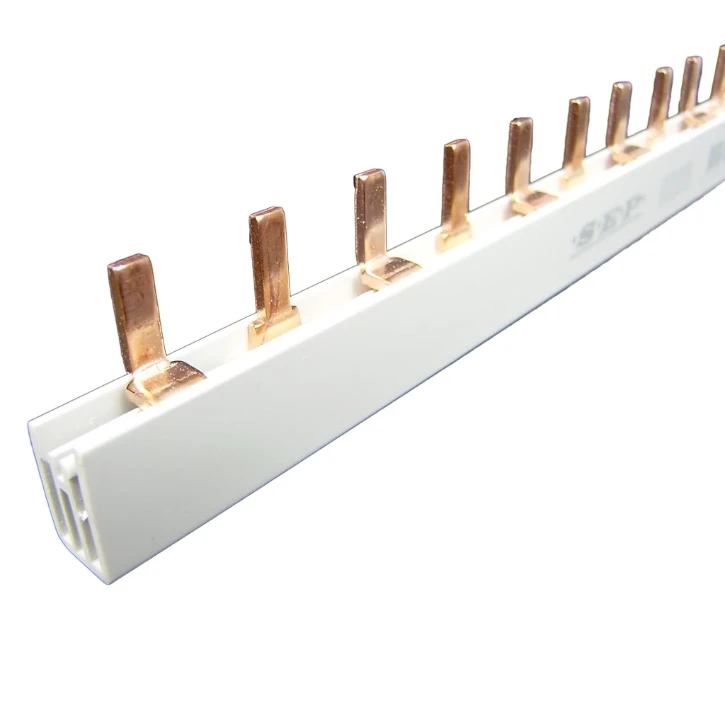

SEP 16P002G00 Kam 2 fase, 16mm2, 54 PIN, 17.8mm, grijs
- 3019-5820
- |
- 16P002G00
2
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
SEP 16P002G00 Kam 2 fase, 16mm2, 54 PIN, 17.8mm, grijs
SEP 16P002G00 Kam 2 fase, 16mm2, 54 PIN, 17.8mm, grijs
Ordercode YESSS
3019-5820
Product code
16P002G00
EAN code
08718959007019
Product group
Phase busbar
Brand
SEP Europe
Serie
BUS-Line
Type
Doorverbindingsrail
Product description
SEP 16P002G00 Kam 2 fase, 16mm2, 54 PIN, 17.8mm, grijs
Product specifications
Number of phases
2
Number of poles
54
Suitable for number of devices
27
Module width
17.8 mm
Cross section
16 mm²
Length
1000 mm
Rated permanent current Iu
80 A
Type of electric connection
Pin
Insulated
Yes
Rated surge voltage
4 kV
Conditioned rated short-circuit current Iq
25 kA
Max. rated operation voltage Ue
500 V
Rated short-time withstand current lcw
25 kA
Suitable for devices with N-conductor
Yes
Suitable for devices with auxiliary switch
No
