Artes Grafiet 380lm 2700K Ra>80 Fase afsnijding
- 3043-1891
- |
- 641703
5
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Artes Grafiet 380lm 2700K Ra>80 Fase afsnijding
Artes Grafiet 380lm 2700K Ra>80 Fase afsnijding
Ordercode YESSS
3043-1891
Product code
641703
EAN code
07021986417036
Product group
Ceiling-/wall luminaire
Brand
SG
Serie
Artes
Type
Artes Grafiet 380lm 2700K Ra>80 Fas
Product description

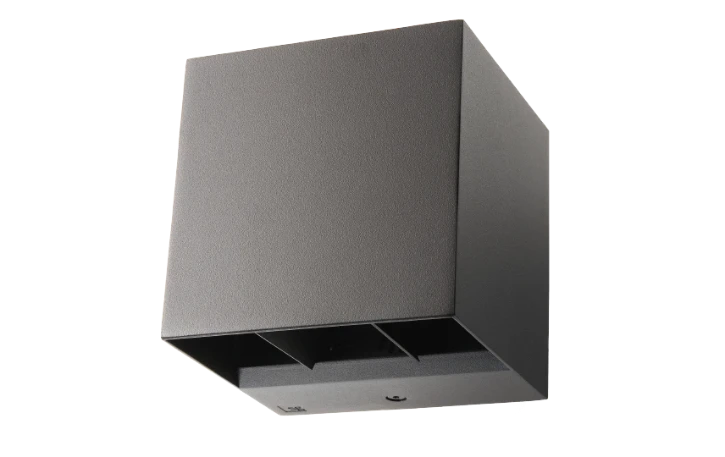

Artes is een fraai en decoratief armatuur voor wandmontage buitens- of binnenshuis. Vervaardigd van drukgegoten en gepoedercoat aluminium. Dimbaar met fase-afsnijdimmer. Eenvoudige installatie met montageachterplaat, snelklemmen en twee kabelingangen. Mogelijkheid tot individuele trapsgewijze aanpassing van de lichthoek/lichtverdeling naar boven en/of naar beneden. Up-/downlight kan desgewenst worden uitgeschakeld.
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
No
Suitable for built-in mounting
No
Suitable for surface mounting
Yes
Suitable for light line configuration
No
Suitable for workplace according to EN 12464-1
No
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
2
Lamp holder
Other
Housing material
Aluminium
Housing colour
Grey
Material cover
Plastic, transparent
Type of grid
White
Voltage type
AC
Type of control gear
Not required
With control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Dimming mains voltage modulation
No
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
No
Dimming programmable
No
Dimming RF
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Other
Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Rated lifetime L70/B50 at 25 °C
0 h
Degree of protection (NEMA)
Other
Impact strength
IK10
Protection class according to IEC 61140
II
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1
25 - 25 °C
Suitable for emergency lighting
No
With movement sensor
No
With light sensor
No
Covering of the luminaire with thermally insulating material possible
No
With air slots
No
Filament test according to IEC 60695-2-11
None
Suitable for lamp power
8 - 8 W
Max. system power
8 W
Colour of light
White
Colour temperature
2700 - 2700 K
Colour rendering index CRI
80-89
Power factor
0.95
Width
120 mm
Height/depth
110 mm
Length
120 mm
Outer diameter
0 mm
Built-in length
0 mm
Built-in width
0 mm
Built-in height/depth
0 mm
Built-in diameter
0 mm
Type of wiring
Suitable for loop-through wiring
Number of poles
2
Conductor cross section
1 mm²
Connection type
Push-in clamp
Surface protection housing
Other
Exchangeable control gear
No
Dimming DALI-2
No
Colour consistency (McAdam ellipse)
SDCM3
Max. number of luminaires per miniature circuit breaker B16 (MCB)
150
Max. number of luminaires per miniature circuit breaker C16 (MCB)
150
Photobiological safety according to EN 62471
RG1
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
Yes
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Compatible with Casambi
No
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)
No
Dimmable
Yes
Luminaire efficacy
43 - 43 lm/W
Rated luminous flux according to IEC 62722-2- 1
340 - 340 lm
With presence detector
No
Degree of protection (IP), rear side
Other
Degree of protection (IP), front side
IP65
Max. number of luminaires per miniature circuit breaker C10 (MCB)
90
Emergency power supply system
None
Luminous flux in emergency mode
0 lm
Emergency function monitoring system
None
Ball-proof according to DIN 18032-3
No
Suitable for clamp-mounting
No
With mounting material
Yes
With switch
No
