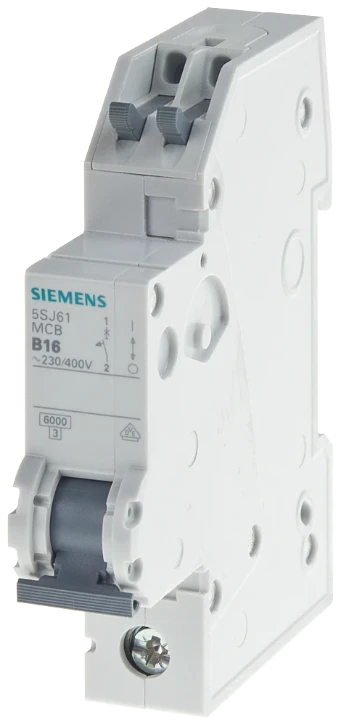

Miniature circuit breaker 230/400 V 6 kA, 1-pole, B, 13
- 3071-1143
- |
- 5SJ61136KS
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Miniature circuit breaker 230/400 V 6 kA, 1-pole, B, 13
Miniature circuit breaker 230/400 V 6 kA, 1-pole, B, 13 A, D=70 mm wit
Ordercode YESSS
3071-1143
Product code
5SJ61136KS
EAN code
04001869323893
Product group
Miniature circuit breaker (MCB)
Brand
Siemens AG
Type
CIRCUIT BREAKER 6KA 1POL B13 SKL
Product description
Miniature circuit breaker 230/400 V 6kA, 1-pole, B, 13 A, D=70 mm with screwless outgoing terminals The miniature circuit breaker is the fuse for short-circuit protection. The Siemens miniature circuit breakers are characterized primarily by: 1. Effective personnel, investment and plant protection against overload and short-circuits. 2. Reliable safety during installation due to standard reach-around and touch protection. 3. The data matrix code on the front of the device provides quick and easy access to information on all aspects of miniature circuit breakers. 4. Optimized technology for your safety -only from Siemens.
Product specifications
Release characteristic
B
Number of poles (total)
1
Number of protected poles
1
Rated current
13 A
Rated voltage
400 V
Rated insulation voltage Ui
440 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
6 kA
Voltage type
AC/DC
Frequency
50 - 50 Hz
Current limiting class
3
Concurrently switching neutral conductor
No
Overvoltage category
3
Pollution degree
2
Additional equipment possible
No
Width in number of modular spacings
1
Built-in depth
70 mm
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 45 °C
Connectable conductor cross section multi-wired
0.75 - 25 mm²
Connectable conductor cross section solid-core
0.75 - 25 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
2 W
