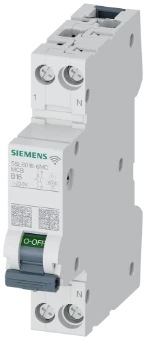

Miniature circuit breaker 5SL6 COM, measurement function, communicatio

Add to selection
General information
Ordercode YESSS
3071-1534
Product code
5SL60166MC
EAN code
04001869578408
Product group
Miniature circuit breaker (MCB)
Brand
Siemens AG
Type
MCB COM 230V 6kA, 1+N, B16
Miniature circuit breaker 5SL6 COM, measurement function, communicatio Miniature circuit breaker 5SL6 COM, measurement function, communicatio
STOCK
IN STOCK
0 piece
Product description

Miniature Circuit Breaker Measuring, Communication AC 230V 6kA, 1+N pole, B, 16A Please consider Radio approval! List of countries: see Certificates Miniature circuit breaker SENTRON 5SL6 COM for fail-safe short-circuit and overload protection for standard applications in residential and non-residential buildings. Multifunctional miniature circuit breaker with integrated measurement function and wireless communication in standard size. Installation of the device without tools. Simple wiring of the infeed through the rear busbar. The communication-capable 5SL6 COM miniature circuit breakers are available as a 1+N version with various characteristics. The extensive accessories, such as the remote controlled mechanism, allow the functions to be extended in a wide variety of ways. Simply safe with the protection devices from SENTRON.

Product specifications
Release characteristic
B
Number of poles (total)
2
Rated current
16 A
Rated voltage
230 V
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Voltage type
AC
Current limiting class
3
Concurrently switching neutral conductor
Yes
Overvoltage category
3
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
1
Built-in depth
70 mm
Ambient temperature during operating
-25 - 60 °C
Connectable conductor cross section multi-wired
0.75 - 16 mm²
Connectable conductor cross section solid-core
0.75 - 16 mm²
Flush-mounted installation
No
Explosion-proof
No
