General information

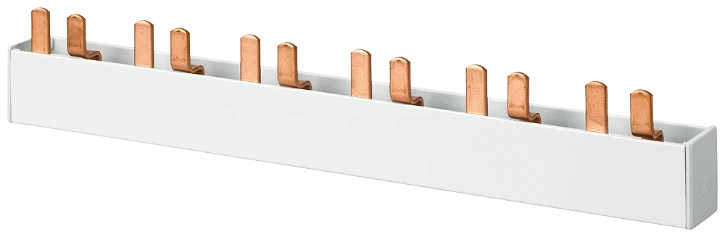

Pin busbar 18 mm2, 2-phase, 28x 2PH, 1000 mm can
Pin busbar 18 mm2, 2-phase, 28x 2PH, 1000 mm can be cut
Ordercode YESSS
3071-2086
Product code
5ST37050HG
EAN code
04001869414294
Product group
Phase busbar
Brand
Siemens AG
Type
PIN BUSBAR 18SQMM 2PH UL508
Product description
Pin busbar 2-phase, 1016 mm long touch-safe, 18 mm2 without end caps, according to UL 508 Pin busbar SENTRON 5ST3 as additional components for residual current devices and miniature circuit breakers. These additional components can be mounted universally. They are easy and convenient to install and connect. Thanks to the standard touch protection, safety is reliably ensured during installation. Optimized technology for your safety - only from Siemens.
Product specifications
Number of phases
2
Suitable for number of devices
28
Module width
18 mm
Cross section
18 mm²
Length
1000 mm
Type of electric connection
Pin
Insulated
Yes
Suitable for devices with N-conductor
No
Suitable for devices with auxiliary switch
No
Width in number of modular spacings
56
