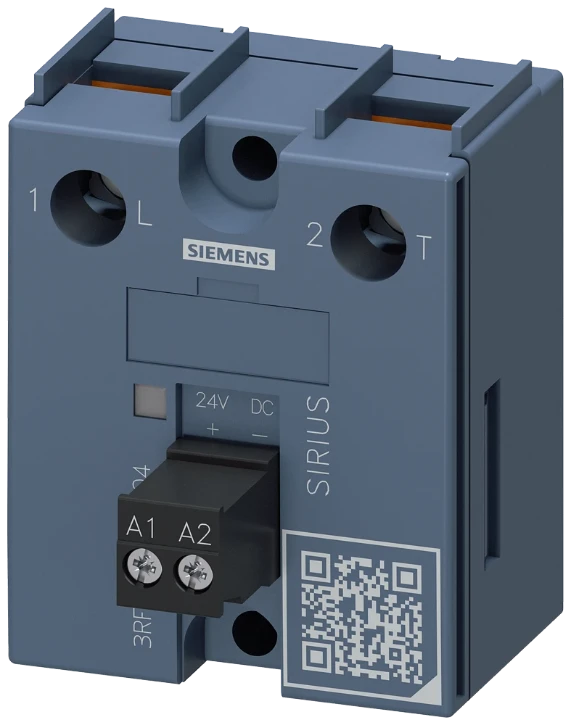

Semiconductor relay, 1-pole, 45 mm, 50 A, 48-460 V/24 V
- 3140-2333
- |
- 3RF30501AA04
0
piece
in stock
Don’t have an account? Request account
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information
Semiconductor relay, 1-pole, 45 mm, 50 A, 48-460 V/24 V
Semiconductor relay, 1-pole, 45 mm, 50 A, 48-460 V/24 V DC screw termi
Ordercode YESSS
3140-2333
Product code
3RF30501AA04
EAN code
04047621114637
Product group
Solid state relay
Brand
Siemens AG
Type
SC-RELAY 45MM 50A 48-460V/24VDC
Product description
semiconductor relay, 1-pole 3RF3 for use with heat sinks width 45 mm, 50 A 48-460 V / 24 V DC screw terminal
Product specifications
Rated control supply voltage DC
15 - 24 V
Voltage type for actuating
DC
Rated operation current Ie at AC-1
50 A
Rated operation current Ie at AC-51
50 A
Number of phases
1
Suitable for distribution board
Yes
Type of electric connection
Screw connection
With detachable clamps
Yes
With LED indication
Yes
Type of switch function
Normally open contact (NO)
Voltage type (operating voltage)
AC
Operating voltage AC 50 Hz
48 - 460 V
Operating voltage AC 60 Hz
48 - 460 V
Degree of protection (IP)
IP20
Width
45 mm
Height
58 mm
Depth
48 mm
