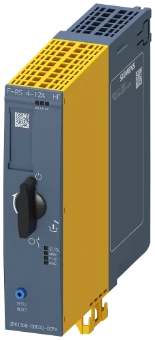

Motor starter/Motor starter combination Siemens AG
Add to selection
General information
Ordercode YESSS
3068-3089
Product code
3RK13080DE000CP0
EAN code
04047621031552
Product group
Motor starter/Motor starter combination
Brand
Siemens AG
Product specifications
With short-circuit release
Yes
Voltage type for actuating
DC
Rated operation power at AC-3, 230 V, 3-phase
4.78 kW
Rated operation current Ie
12 A
Overload release current setting
4 - 12 A
With transformer
No
Coordination class according to IEC 60947-4-3
Class 1
Number of indicator lights
7
External reset possible
Yes
Degree of protection (IP)
IP20
Supporting protocol for ASI
No
Width
30 mm
Height
142 mm
Depth
150 mm
Product information
