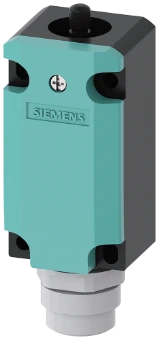

End switch Siemens AG
Add to selection
General information
Ordercode YESSS
3069-1343
Product code
3SE51150LA001AD1
EAN code
04011209763661
Product group
End switch
Brand
Siemens AG
Product specifications
Width sensor
40 mm
Height of sensor
37.3 mm
Length of sensor
111.7 mm
Rated operation current Ie at AC-15, 24 V
6 A
Rated operation current Ie at AC-15, 125 V
6 A
Rated operation current Ie at DC-13, 24 V
3 A
Rated operation current Ie at DC-13, 125 V
0.55 A
Switching function
Quick-break switch
Switching function latching
No
Output electronic
No
Forced opening
Yes
Number of safety auxiliary contacts
2
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Housing material
Metal
Coating housing
Lacquered
Alignment of the control element
Roller cam straight
Type of electric connection
Plug-in connection others
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
-25 - 85 °C
Degree of protection (IP)
IP65
Degree of protection (NEMA)
12
Product information
