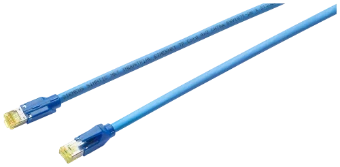

IE TP Cord RJ45/RJ45, 4x2, 2xRJ45 plugs 4x2, CAT6A, 0.5
Add to selection
General information
Ordercode YESSS
3113-9955
Product code
6XV18704BE50
EAN code
04047623800088
Product group
Data and communication cable
Brand
Siemens AG
Type
TP Cord RJ45/RJ45 0,5 m blue
IE TP Cord RJ45/RJ45, 4x2, 2xRJ45 plugs 4x2, CAT6A, 0.5
IE TP Cord RJ45/RJ45, 4x2, 2xRJ45 plugs 4x2, CAT6A, 0.5 m
STOCK
IN STOCK
0
piece
Product description
Industrial Ethernet TP Cord RJ45/RJ45, CAT 6A, TP cable 4x2 (blue, pre-assembled with 2 RJ45 connectors, length 0.5 m. SIMATIC NET cables IE TP Cord RJ45/RJ45, 4x2, simple connection of end devices with an RJ45 connection to the interference-proof Industrial Ethernet FastConnect cabling system (10/100/1000 Mbps). Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines). Quick and error-free commissioning thanks to pre-assembled, factory-tested patch cables. Simple cable laying due to small cable diameter.
Product specifications
Conductor surface
Bare
Diameter conductor
0.5 mm
Number of cores
8
Number of stranding elements
4
Stranding element
Pairs
Material core insulation
Other
Core identification
Colour
Screen over stranding element
Foil
Stranding
Bundle
Screen over stranding
Braiding
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Blue
Reaction-to-fire according to EN 13501-6: Class
Eca
Outer diameter approximate
6.2 mm
Min. permitted bending radius, moving application with forced guidance
62 mm
Min. permitted bending radius, moving application/free movement
62 mm
Min. permitted bending radius, stationary application/permanent installation
62 mm
Permitted cable outer temperature during assembling/handling
-25 - 80 °C
Permitted cable outer temperature after assembling without vibration
-25 - 80 °C
NVP value
76 %
Suitable for underground installation
No
